Parker Hannifin Genuine

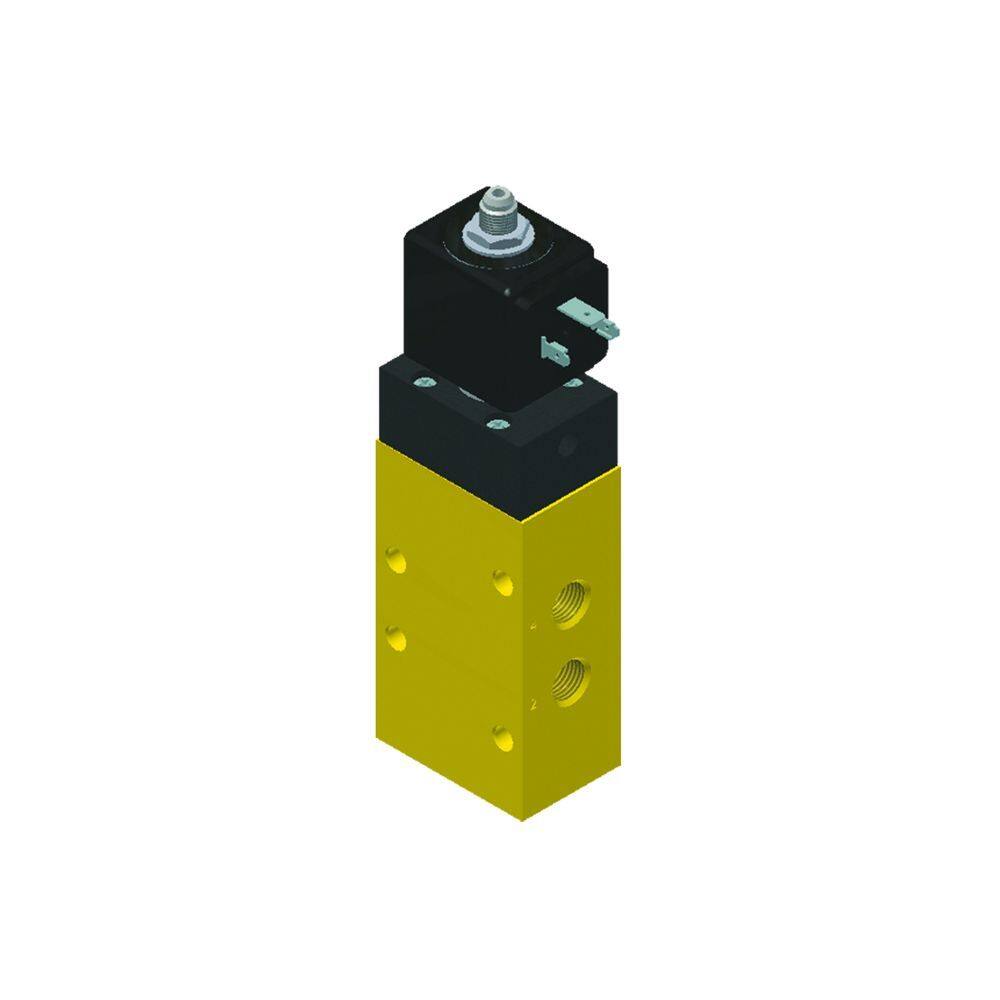

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Npt FKM Orifice 8mm - No Coil - Coil Group 2.1
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Function
5 Way Valves 5/2 5 Way Pneumatic Distributors (Pipe Mounting/Sub-Base Mounting) Pilot Operated Anodized Alumin
Port size
1/4" BSP
Operating pressure
1–10 bar (AC) / 1–10 bar (DC)
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Npt FKM Orifice 8mm - No Coil - Coil Group 2.1
Specifications
| Function | 5 Way Valves 5/2 5 Way Pneumatic Distributors (Pipe Mounting/Sub-Base Mounting) Pilot Operated Anodized Alumin |
|---|---|
| Port size | 1/4" BSP |
| Operating pressure | 1–10 bar (AC) / 1–10 bar (DC) |
| Fluid temperature | -10°C to +75°C |
| Seat seal | FKM |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.1 W |
| Valve code | U341L1130 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.258, 525 |
