Parker Hannifin Genuine

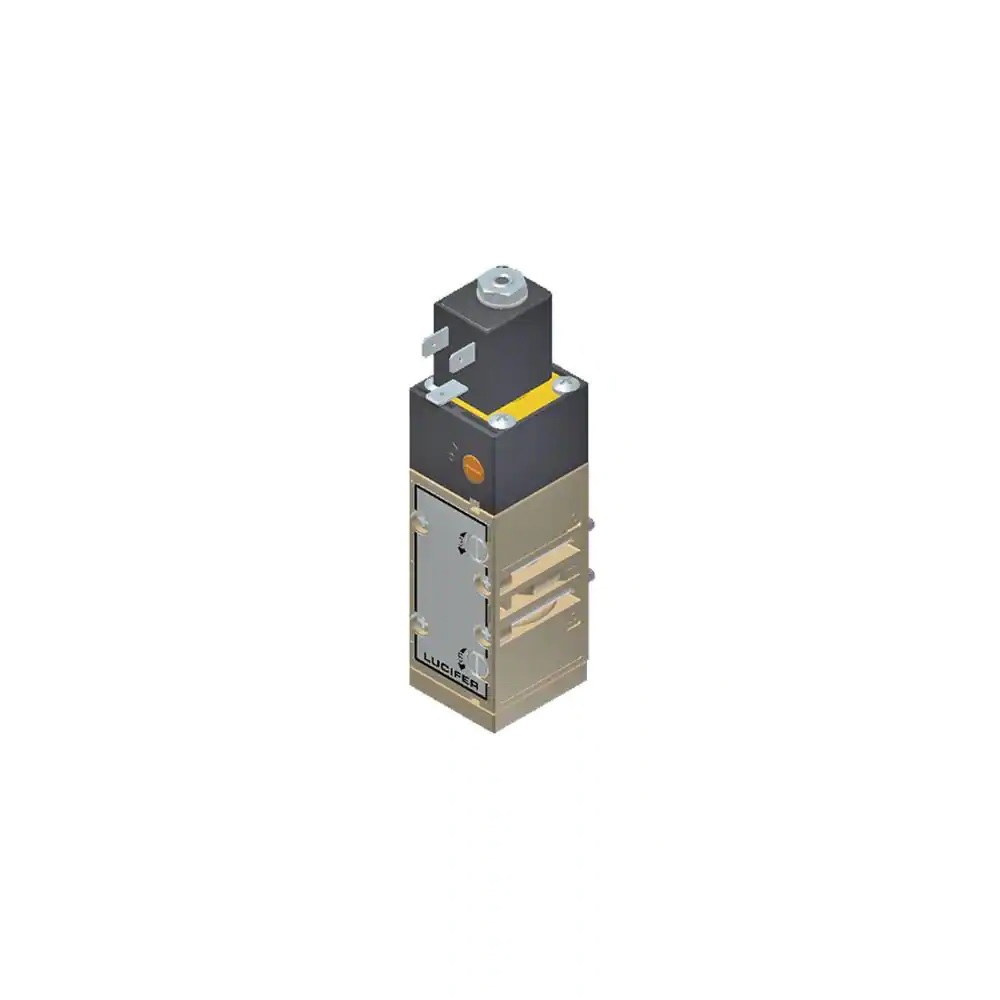

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return POM Valve Pilot Operated CETOP Sub-Base NBR Orifice 6mm c/w Manual Override - No Coil - Coil Group 1.1
R6214,96Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
POM
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return POM Valve Pilot Operated CETOP Sub-Base NBR Orifice 6mm c/w Manual Override - No Coil - Coil Group 1.1
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | POM |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 800 l/min |
| Port Type | CETOP |
| Minimum Fluid Temperature | -10 °C |
| ATEX Specifications Met | - |
| Orifice Size | 6 mm |
| Media | Air |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| Maximum Fluid Temperature | 75 °C |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.262, 525 |
