Parker Hannifin Genuine
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Pilot Return Pipe - No Coil - Coil Group 2.1
R28749,37Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 50 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
40 bar AC/DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview

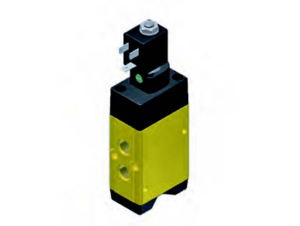

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Pilot Return Pipe - No Coil - Coil Group 2.1
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 40 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| ATEX Specifications Met | - |
| Flow Coefficient | 10 l/min |
| Maximum Fluid Temperature | +75°C |
| Orifice Size | 8 mm |
| Port Size | G 1/4 |
| Port Type | PIPE MOUNTING |
| Specifications Met | Pilot seat discs in Kel-F (PCTFE); valve with pilot return pipe. |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| Media | air, Neutral Gases, Oil |
| Insulation Class | n/a |
| Actuation Type | Pilot Operated |
| Coil Specifications Met | - |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.244, 525 |
Documents
Catalogues Literature
Demos & Tutorials
Catalogues & Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

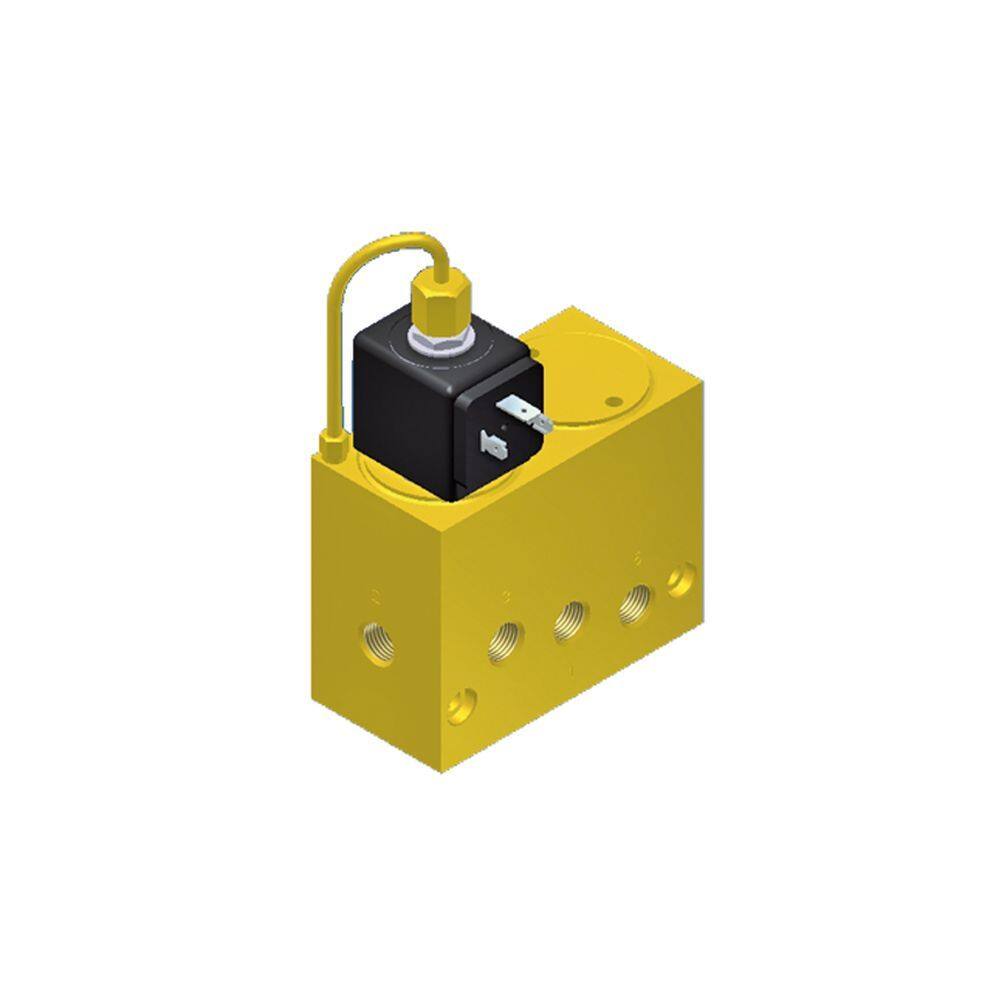

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated Sub-Base NBR Orifice 15mm - No Coil - Coil Group 6.0/7.0/8.0
