Maximum Operating Pressure
2–10 bar
Temperature Range
-20°C to +120°C
Media
compressed air

Overview

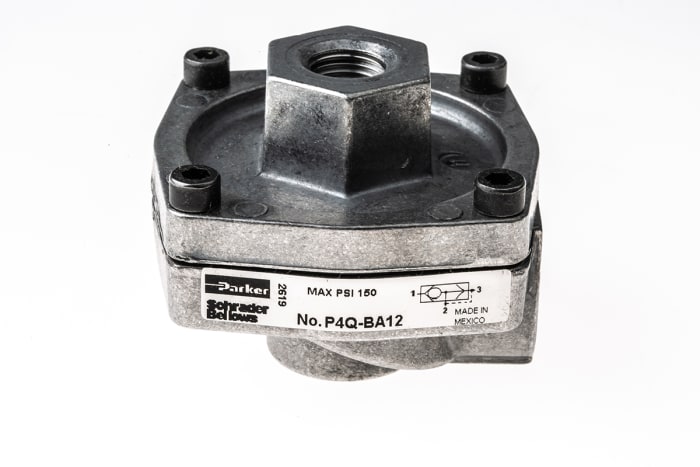

Parker P4Q Series Standard Quick Exhaust Valve 1/2"Bspp

Source: appliedgroup.co.za ↗

Specifications

Maximum Operating Pressure 2–10 bar
Temperature Range -20°C to +120°C
Media compressed air
Application quick exhaust valves venting a cylinder port locally to speed the return stroke
Pressure (detail) 2 to 10 bar (shape 7910 from 0.7 to 10 bar). Range STAMP — Parker Legris current catalogue, p.85
Size (detail) sizes per shape — the range specification block prints no single size
Temperature (detail) -20°C to +120°C
Catalogue reference Parker Pneumatic Airline-Accessories PDE2566TCUK, p.4
Port / connection G1/2
Function Quick exhaust valve
Description Quick exhaust valve, standard version, aluminium body, nitrile diaphragm, Cv 6.6
