Parker Hannifin Genuine

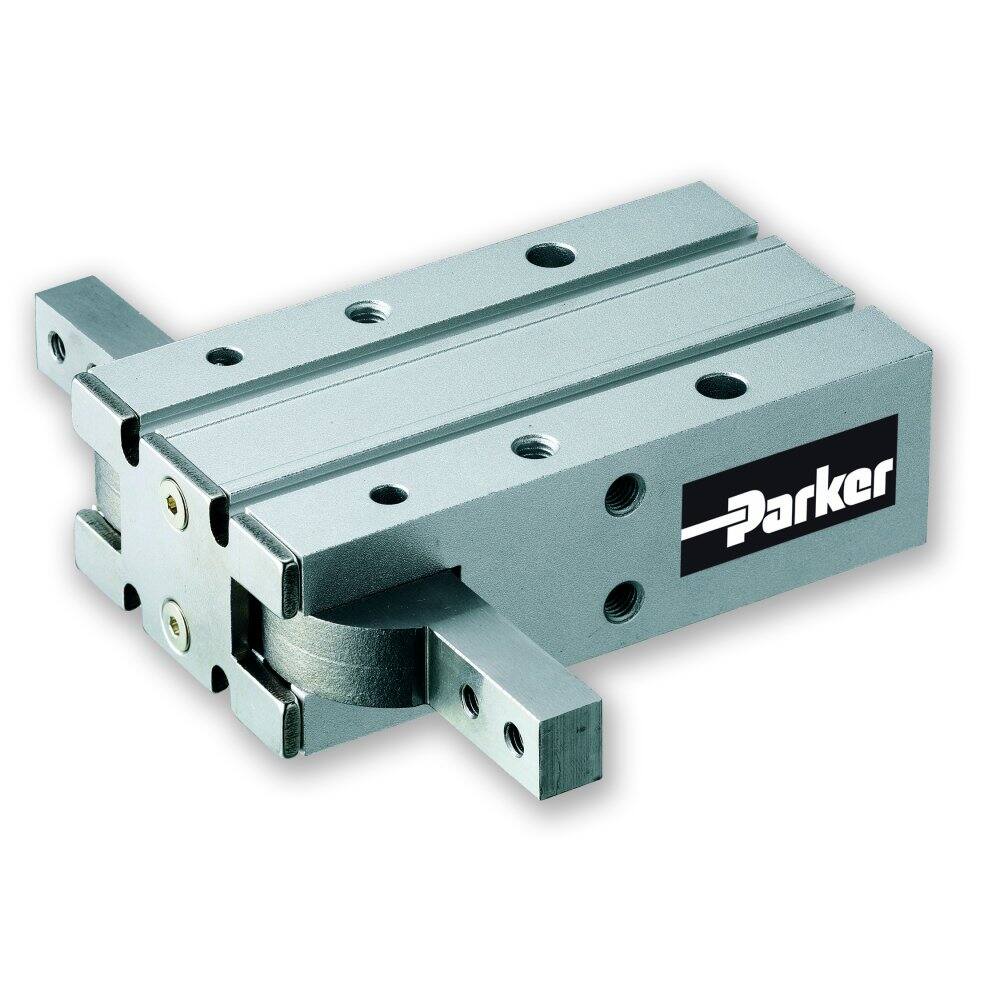

Parker P5GL Series 16mm Bore Double Acting 180° Angular Gripper Square Jaw Cam Style
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
7 bar
Bore
16 mm
Function
180° angular gripper
Overview
Parker P5GL Series 16mm Bore Double Acting 180° Angular Gripper Square Jaw Cam Style
Specifications
| Function | 180° angular gripper |
|---|---|
| Bore | 16 mm |
| Grip force at 5 bar | 36 N |
| Repeatability | ±0.02 mm |
| Magnetic piston | Yes |
| Maximum Operating Pressure | 7 bar |
| Temperature | -10 to +60°C |
| Media | Dry air |
| Operating angle | -3° to +180° |
| Catalogue reference | Parker Pneumatic Handling Products PDE2669TCUK, p.38, 39, 41 |
