P5G Grippers

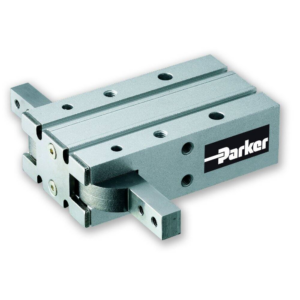

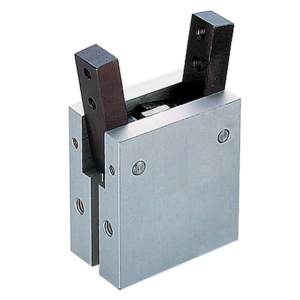

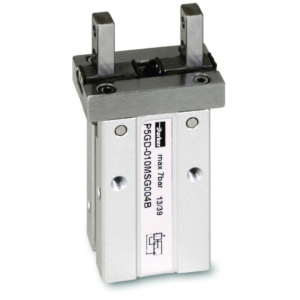

Parker P5G pneumatic grippers cover angular (P5GA, -10° to +30°), parallel (P5GB), guided parallel precision (P5GD, ±0.01 mm repeatability) and 180° cam-style (P5GL) designs in bores 10 to 32 mm. All are double acting with magnetic pistons as standard for optional P8S sensing, with jaw strokes 4 to 16 mm and gripping forces up to 203 N at 5 bar.

Size: Bores 10 to 32 mm; jaw strokes 4 to 16 mm; angular travel to 180°Temperature: -10°C to +60°CApplication: Pick-and-place, robotic part handling and clamping of small componentsMedia: Dry air, lubricated or unlubricatedPressure: 1.5 to 7 bar
