Parker Hannifin Genuine

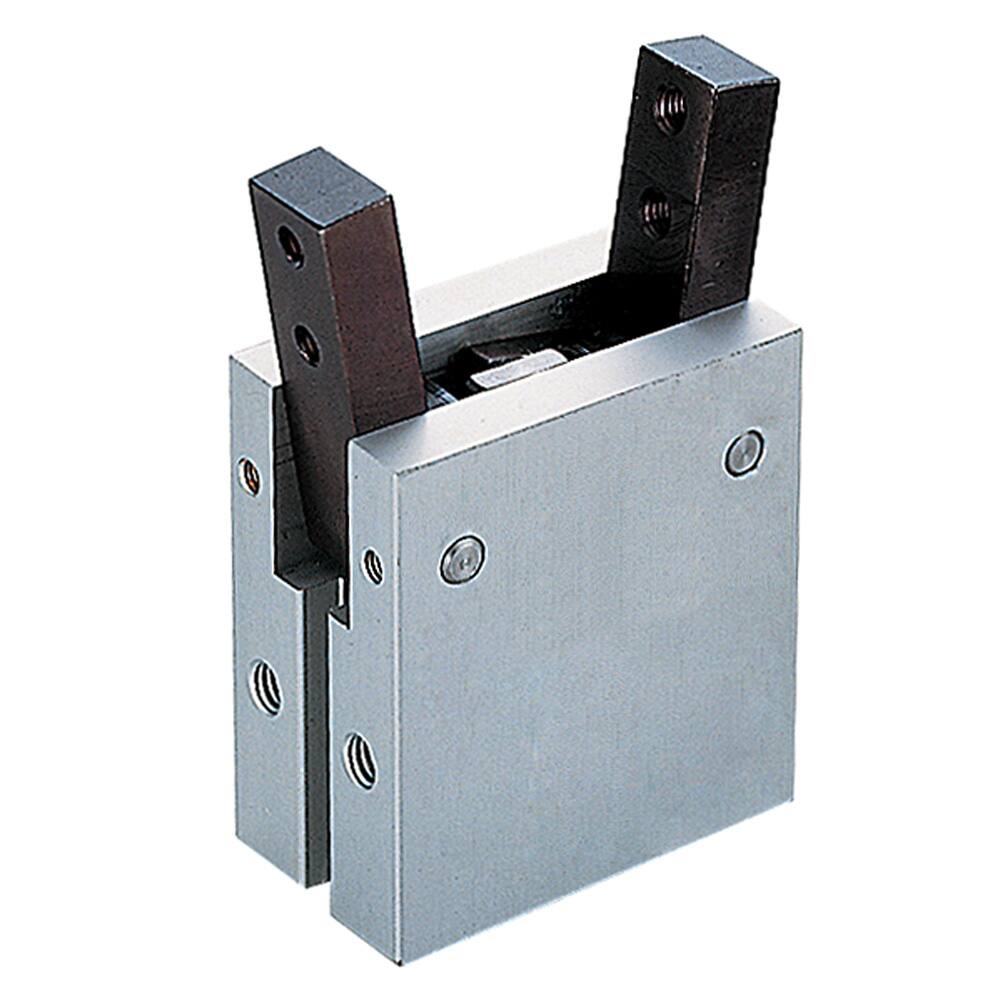

Parker P5GA Series 16mm Bore Double Acting Angular Gripper Square Jaw
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
7 bar
Body Material
Aluminum Alloy
Bore
16 mm
Overview
Parker P5GA Series 16mm Bore Double Acting Angular Gripper Square Jaw
Specifications
| Function | Double Acting |
|---|---|
| Body Material | Aluminum Alloy |
| Weight | 0.103 kg |
| Product Type | Angular Gripper |
| Bore Size | 16mm |
| Repeatability | ± 0.04 ° |
| Operating Pressure | 1.5 to 7 bar |
| Position Sensing Type | Yes |
| Port Size | M5 |
| Maximum Operating Frequency | 3 Hz |
| Repairable | No |
| Bore Diameter | 16 mm |
| Gripper Material | Medium Carbon Steel |
| Piston Type | Magnetic Piston |
| Response Time | 10 ms (min. closing) |
| Gripping Force | 30 N at 5 bar |
| Corrosion Resistance Included | Yes |
| Operating Temperature | -5 to 60 °C |
| Operating Angle | -10 to 30 ° |
| Bore | 16 mm |
| Grip force at 5 bar | 30 N |
| Magnetic piston | Yes |
| Maximum Operating Pressure | 7 bar |
| Temperature | -5 to +60°C |
| Media | Dry air |
| Operating angle | -10° to +30° |
| Catalogue reference | Parker Pneumatic Handling Products PDE2669TCUK, p.12, 15 |
Documents
Catalogues Literature
Catalogues & Literature
Parker Pneumatic Handling Products Brochure - PDE2669SLUK
Parker Pneumatic Handling Products Technical Catalogue - PDE2669TCUK
