Parker Hannifin Genuine

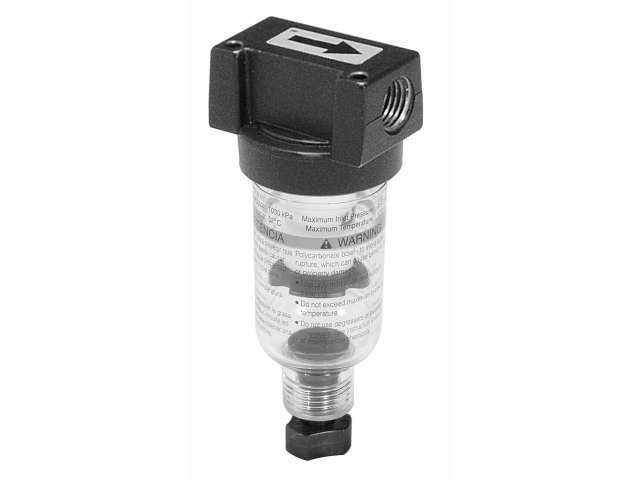

Parker Prep-Air® II Miniature 1/4"Npt Coalescing Filter, Auto/Pulse-Drain, 0.01 Micron
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
10–20 bar
Size / port thread
1/4"–1-1/2" BSP
Temperature Range
-40°C to +65.5°C
Overview
Parker Prep-Air® II Miniature 1/4"Npt Coalescing Filter, Auto/Pulse-Drain, 0.01 Micron
Specifications
| Maximum Operating Pressure | 10–20 bar |
|---|---|
| Size / port thread | 1/4"–1-1/2" BSP |
| Temperature Range | -40°C to +65.5°C |
| Working media | compressed air; lubricators deliver compressed air with oil mist |
| Application | filtration, regulation and lubrication of compressed air at the point of use — modular Global FRL (P31/P32/P33), high-flow P3Y, and Prep Air II mini |
| Pressure (detail) | 10 bar with a polycarbonate bowl, 17 bar with a metal bowl, 17.5 bar on P3Y; regulators take 20 bar max supply. Source: Parker Global Air Preparation System, PDE2676TCUK |
| Size (detail) | 1/4" to 1" BSP, and 1-1/2" on P3Y via the P3YKA port block |
| Temperature (detail) | -40°C to +65.5°C across the range; on any unit with a bowl the bowl sets the limit, not the body |
| Catalogue reference | Prep-Air II Miniature FRL, p.1, 2, 3, 6, 7, 14 |
