Parker Hannifin Genuine

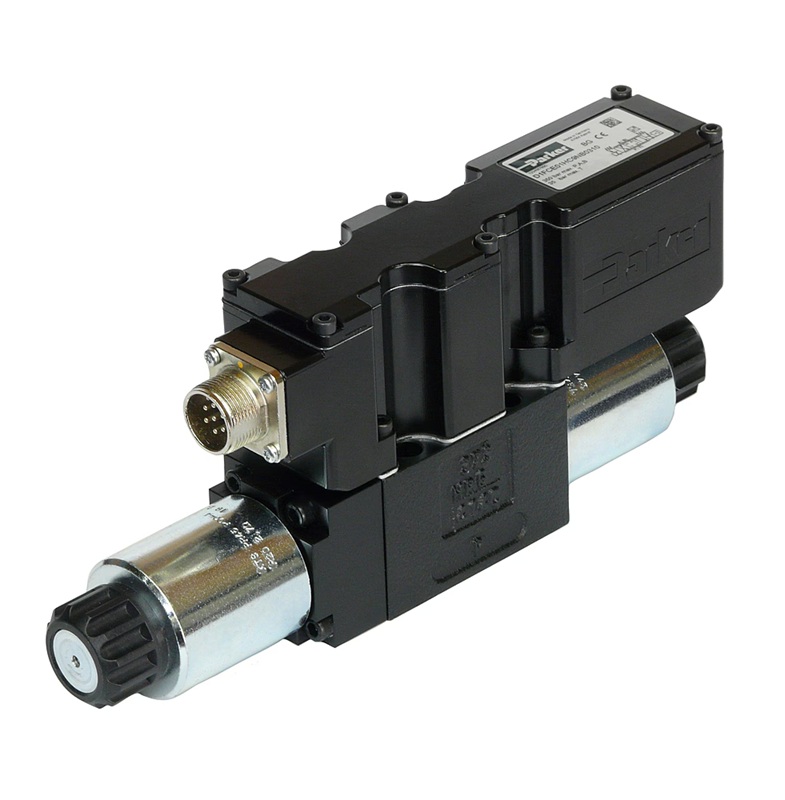

Parker Proportional Directional Control Valve D1FCE50KC9NB0320
R126126,33Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
350 bar
Body Material
Cast Iron
Function
3-way
Overview
Parker Proportional Directional Control Valve D1FCE50KC9NB0320
Specifications
| Function | 3-way |
|---|---|
| Connection Type | 6 + PE |
| Maximum Operating Pressure | 350 bar |
| Body Material | Cast Iron |
| Seal Material | NBR |
| Flow Rate | 30 L/MIN |
| Weight | 3.4 kg |
| For Fluid Type | Hydraulic Oil according to DIN 51524 ... 535 |
| Product Series | Proportional DC Valve |
| Defined Spool Position At Power Down | Center position |
| Marking | Standard |
| Port Connection | NG06 / CETOP 03 |
| Signal Input | 0 to ±10 V |
| Signal Output | +10...0...-10 V |
| Spool Code | E50, equal metering, 4-way, 3 position, all ports open, metered |
| Spool Type | Zerolap |
| Power Supply Voltage | 18 to 30 VDC electric shut-off at < 17, ripple < 5 % eff., surge free |
| Variation of Opening Point | set to 10 % command signal |
| Minimum Kinematic Viscosity | 20 cSt |
| Vibration Resistance | 10 (RMS) Random Noise 20...2000 Hz Acc. IEC 68-2-36, 10 Sinus 5...2000 Hz Acc. IEC 68-2-6, 15 Shock Acc. IEC 68-2-27 |
| Minimum Fluid Temperature | -25 °C |
| Maximum Fluid Temperature | 60 °C |
| Mounting Position | Unrestricted |
| Electronics Type | Onboard |
| Maximum Ambient Temperature | 60 °C |
| Response Time | 20 ms |
| Hysteresis | < 0.1 % |
| Minimum Ambient Temperature | -20 °C |
| Maximum Flow Rate | n/a |
| Mounting Style | DIN 24340 / ISO 4401 / CETOP RP121 / NFPA |
| Filter Efficiency Rating | ISO 4406; 18/16/13 |
| Leak Rate | < 800 ml/min (zerolap spool) |
| Mounting Type | Subplate |
| Actuation Type | Proportional, Solenoid |
| Spool Design | Spool/body |
| Pressure Differential | 5 bar |
| Maximum Kinematic Viscosity | 400 cSt |
| Ingress Protection Rating | IP65 in accordance with EN 60529 |
| Catalogue reference | Parker Hydraulic Valves MSG11-3500/UK – D1FC |
Documents
Catalogues Literature
Software Downloads
SOFTWARE - ProPxD Parameter Software (Release 603_9011, 2020)
SOFTWARE - Configuration file for ISDE EtherCAT® valves
SOFTWARE - ProPxD V2 Parameter Software (2026)
Catalogues & Literature
Direct Operated Proportional DC Valves with Position Feedback Series D1FC/D3FC, Brochure--HY11-3360/UK
Proportional Directional Control Valve Catalog - D1FC (North America)
Proportional Directional Control Valve Catalog - D3FC (North America)
INSTALLATION MANUAL - Proportional DC Valve Series D*FC / D*1FC
CATALOGUE - Direct and Pilot Operated Proportional DC Valves with EtherCAT® Series D*FC/D*1FC
CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Direct Operated Proportional DC Valve Series D3FC
INSTALLATION MANUAL SUPPLEMENT - Valves with EtherCAT Interface
CATALOGUE - Direct Operated Proportional DC Valve Series D1FC
CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK
