Parker Hannifin Genuine

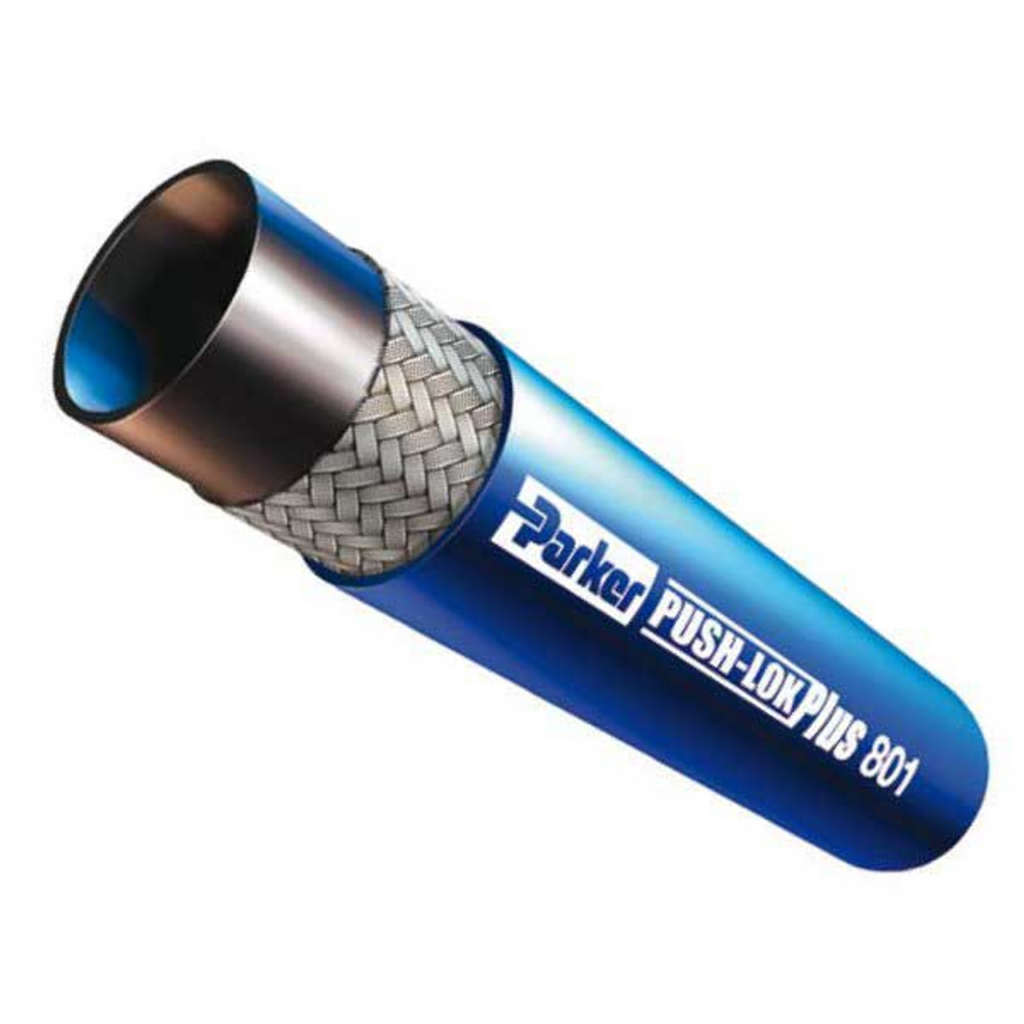

Parker Push-Lok Plus Multipurpose Hose ID 1/2" 12.7mm - Blue - 100m Reel
R878,32Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
21 bar, 2.1 MPa
Temperature Range
-40°C to +100°C (Water 85°C / Air 70°C)
Hose I.D. (size)
-8
Overview
Parker Push-Lok Plus Multipurpose Hose ID 1/2" 12.7mm - Blue - 100m Reel
Specifications
| Maximum Operating Pressure | 21 bar, 2.1 MPa |
|---|---|
| Temperature Range | -40°C to +100°C (Water 85°C / Air 70°C) |
| Outside Diameter | 19.4 mm |
| Weight | 0.27 kg/m |
| Compatible Fitting | 82 Series |
| Product Type | Push-Lok and Push-on Hoses, Push-Lok and Push-on Hoses (Push-Lok Plus) |
| Cover Color | Different Colours |
| Hose Inside Diameter | 12.7 mm - 1/2 inch |
| Hose I.D. (size) | -8 |
| Vacuum Pressure Rating | 0.95 bar, 712.56 mm-Hg |
| Media | Water, Coolants (Water-Glycol), Petroleum Hydraulic Fluids, Air (General Industrial Air), Lubricants (Oils) |
| Specifications Met | Parker Specifications |
| Cover Material | Synthetic Rubber High Performance. |
| Minimum Bend Radius | 125 mm |
| Hose Inner Tube Material | Nitrile Butadiene Rubber (NBR) |
| Size | -8 |
| Application | Low Pressure Hydraulics, Paper & Pulp for water/air applications |
| Inside Diameter | 12.7 mm |
| Hose Reinforcement Material | Braid of High Tensile Fiber |
| Design Factor | 4:1 |
