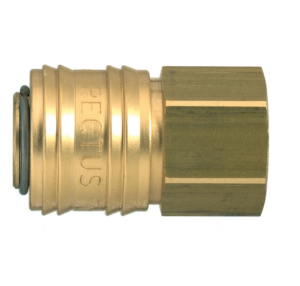

Parker Rectus 26 Series Brass 1/2"Bsp Female Coupler with Single Shut-Off Valve
Overview
26KAIW21MPX - Parker Rectus 26 Series Brass 1/2"Bsp Female Coupler with Single Shut-Off Valve
Rectus 26 Series, Parker Hannifin’s basic, universal, brass coupling with European standard industrial profile. It is a coupling system with single-hand operation and standard-valve, as well as, a small mass size. The ergonomic sleeve design prevents dirt entering the valve body.
Markets:
- Machinery Construction
- Automotive
- Life Science
- Mobile Hydraulics
- Industrial
- Machine Tooling
Features/Benefits:
- Universal brass coupling with European Standard Profile
- Single-hand operation for easy and fast connection
- Lower connection/disconnection force compared to competitive products
- Rectus "Inventor" of series 26
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
Specifications
| Function | Single Shut-Off |
|---|---|
| Coupling Half | Coupler |
| Connection Size | G 1/2 |
| Connection Type | Female BSPP |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -20°C to +100°C |
| Body Material | Brass |
| Seal Material | NBR |
| Sleeve Material | Brass |
| Flow Rate | 1070 L/min (air) |
| Diameter | 7.2 mm (nominal) |
| Hex Size | 24 mm |
| Length | 44 mm |
| Outside Diameter | 25 mm |
| Weight | 0.092 kg |
| Valve Type | Standard Valve |
| Interchange Type | European Profile |
| Compatible Fitting | Series 26 Plug |
| For Fluid Type | Air & Neutral Gases (Industrial compressed, lubricated air) |
| Product Series | Series 26 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Without Surface Treatment |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Application | Food & Beverages, Trucks & Trailers, Safety & Rescue, Industrial Machinery, Air & Gas Compressor, Mobile & Defence |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.129 |
