Parker Hannifin Genuine

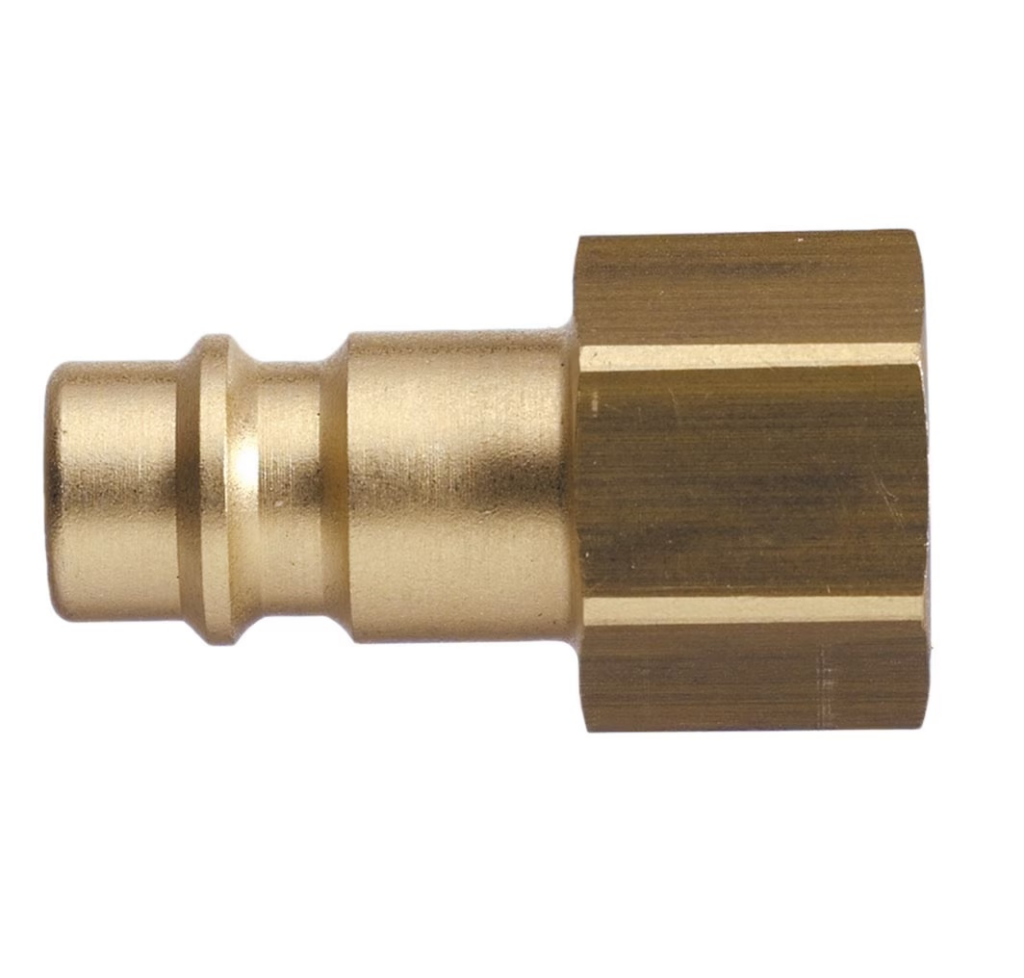

Parker Rectus 26 Series Brass 3/8"Bsp Female Threaded Plug
R65,32Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
35 bar
Hex Size
19 mm
Body Material
Brass
Overview
Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.
Specifications
| Function | Straight-Through |
|---|---|
| Coupling Half | Plug |
| Connection Size | G 3/8 |
| Connection Type | Female BSPP |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -40°C to +200°C |
| Body Material | Brass |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Flow Rate | 1070 L/min (air) |
| Diameter | 7.2 mm (nominal) |
| Hex Size | 19 mm |
| Length | 33 mm |
| Weight | 0.024 kg |
| Valve Type | Without Valve |
| Interchange Type | European Profile |
| Compatible Fitting | Series 26 Coupler |
| For Fluid Type | Air & Neutral Gases (Industrial compressed, lubricated air) |
| Product Series | Series 26 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Without Surface Treatment |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Application | Mobile & Defence, Safety & Rescue, Air & Gas Compressor, Industrial Machinery, Trucks & Trailers, Food & Beverages |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.130 |
