Parker Hannifin Genuine

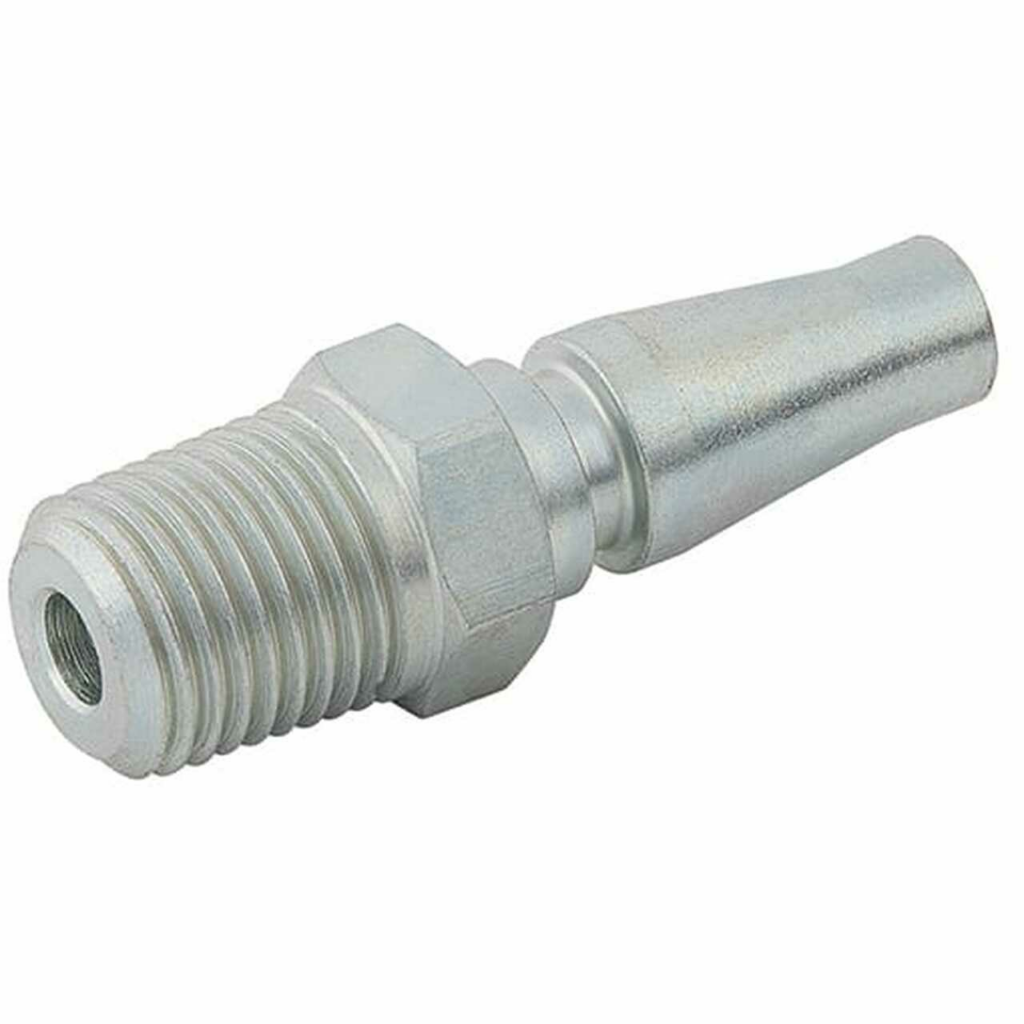

Parker Schrader Twistlok Standard Adaptor 1/4"Bspt Male (Replacement for 8050-B11)
R124,69Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
35 bar
Hex Size
14 mm
Body Material
Steel
Overview
Quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English profile. Available made of brass/steel.
Specifications
| Function | Straight-Through |
|---|---|
| Coupling Half | Plug |
| Connection Size | R 1/4 |
| Connection Type | Male BSPT |
| Maximum Operating Pressure | 35 bar |
| Temperature Range | -20°C to +100°C |
| Body Material | Steel |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Flow Rate | 11 L/min (water), 890 L/min (air) |
| Diameter | 5 mm (nominal) |
| Hex Size | 14 mm |
| Length | 42 mm |
| Outside Diameter | n/a |
| Weight | 0.021 kg |
| Valve Type | Without Valve |
| Interchange Type | British Profile |
| Compatible Fitting | Series 17 Coupler |
| For Fluid Type | Water (Industrial, drinking, treated water), Chemicals (Paints, solvents, lubricants) |
| Product Series | Series 17 |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Nickel-Plated |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Application | Assembly Lines, Air compressors, Pneumatic Power Tools |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.194, 215 |
