Parker V4 Series Hose Nipple - Female ORFS Swivel - 90° Elbow Short Drop - 1" (-16) - Hose -12 - Steel
Overview
Parker ParLock® skive hose fittings are two-piece crimp fittings for Parker's high-pressure multispiral hoses. The hose cover (and, for some series, the inner tube) is skived back before assembly so the ferrule grips the wire reinforcement directly, giving maximum retention for heavy-duty, high-impulse applications. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.

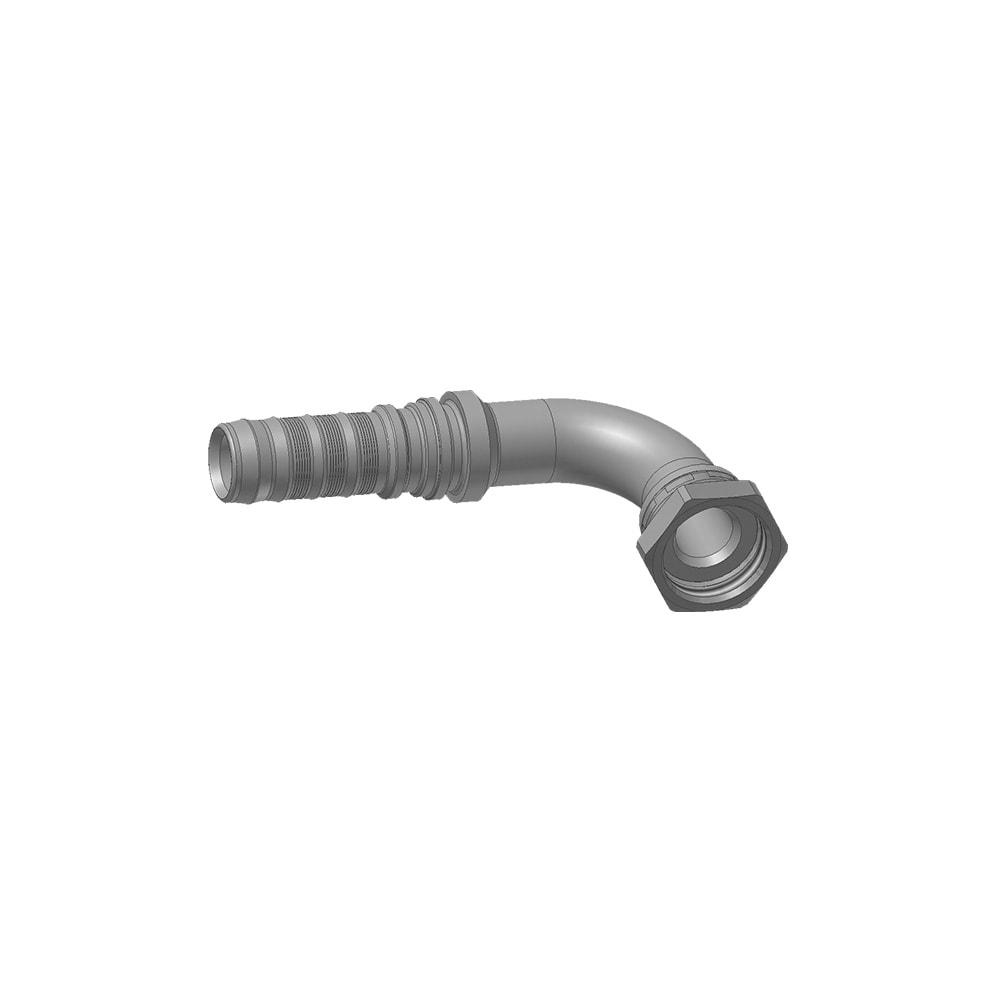

The KJ9V4-16-12 is a Parker V4 Series Hose Nipple with a female ORFS swivel end (1" (-16)), 90° elbow short drop, for size -12 hose, in steel. Supplied as the nipple only, without the crimp shell.
Dimensions, pressure ratings and ordering details are on page 455 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | 19.1 mm |
|---|---|
| Nominal Inside Diameter | DN 19 |
| Port Size | 1-7/16" |
| Connection Size | 1-7/16" Thread |
| Shape | Elbow 90° Short Drop |
| Body Material | Steel |
| Specifications Met | ISO 12151-1-SWES / SAE J516 |
| Connection Type | Female |
| Quantity per Box | 1 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.455 |
