P1F-S ISO 15552 Smooth Profile Small Bore Ø32 to 125mm
The P1F-S Series in bore sizes Ø32 to 125mm is an ISO 15552 double-acting pneumatic cylinder with a smooth profile design suitable for standard, low & high temperatures. With various piston rod materials and wiper/rod sealing options for a wide range of applications. Strokes up to 2500 mm.
Size: bore 32, 40, 50, 63, 80, 100 and 125 mm; standard strokes to ISO 4393 (except 40 mm), non-standard to 2500 mm on request. - Temperature: set by the seal — -20°C to +80°C standard (M); -10°C to +150°C high temperature (F); -40°C to +80°C low temperature (L); -30°C to +80°C metallic scraper (Q); ATEX design A -20°C to +60°C, set by the certificate rather than the seal. Option F has no magnetic piston, so position sensors cannot be fitted. - Application: general purpose ISO 15552 actuation; smooth or tie-rod body. - Media: dry filtered compressed air. - Pressure: 1 to 10 bar. Source: Parker PDE3570TCEN
Parker P1F Series ISO 15552 40mm Bore x 290mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 290 mm
Parker P1F Series ISO 15552 40mm Bore x 365mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 365 mm
Parker P1F Series ISO 15552 40mm Bore x 400mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 400 mm
Parker P1F Series ISO 15552 40mm Bore x 50mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 50 mm

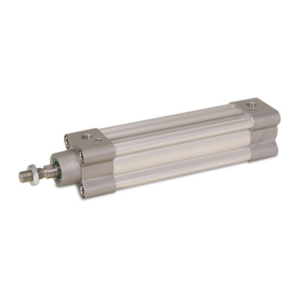

Parker P1F Series ISO 15552 40mm Bore x 750mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 750 mm
Parker P1F Series ISO 15552 40mm Bore x 80mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 80 mm
Parker P1F Series ISO 15552 40mm Bore x 80mm Stroke Smooth Profile Twin Rod Cylinder STD Temp c/w Magnet
PDE3570TCEN, p.4, 6, 7, 8, 9, 12, 13, 16, 17, 18
Parker P1F Series ISO 15552 50mm Bore x 100mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 100 mm
Parker P1F Series ISO 15552 50mm Bore x 125mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 125 mm
