Maximum Operating Pressure
10 bar
Stroke
750 mm
Bore
40 mm

Overview

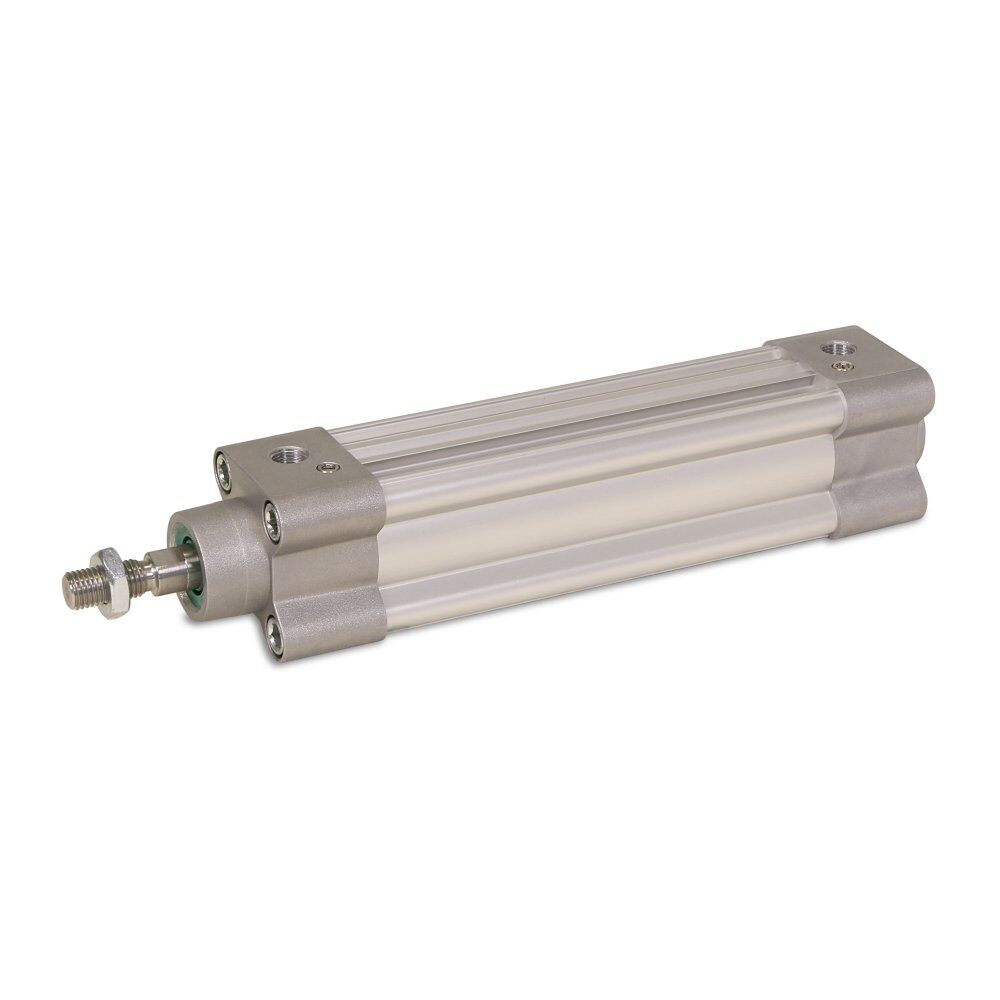

Parker P1F Series ISO 15552 40mm Bore x 750mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet (part number P1F-S040MS-0750-0000) is a Parker P1F double-acting pneumatic cylinder to ISO 15552 (VDMA 24562), 40 mm bore × 750 mm stroke, in the smooth profile design.

Adjustable pneumatic cushioning at both ends lets the end-of-stroke deceleration be tuned on the machine. The magnetic piston works with Parker P8S cylinder sensors for position feedback; the 16 mm stainless steel piston rod carries a male thread for standard ISO rod-end accessories, and the G 1/8 ports accept LF3000 push-in fittings directly. Theoretical force at 6 bar: 750 N extending, 630 N retracting.

Rated to 10 bar on filtered compressed air, lubricated or non-lubricated, with standard seals from -20 °C to +80 °C. Mounts with the ISO 15552 accessory range — foot brackets (MS1), front and rear flanges (MF1/MF2), clevis brackets (MP2/MP4), swivel eye brackets (MP6), pivot brackets (AT4) and rod-end clevises and eyes (AP2/AP6) — all listed under P1F mounting accessories. Interchangeable with any ISO 15552 cylinder of the same bore and stroke.

Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions and the full option code are in the attached catalogue extract.

Specifications

Series Parker P1F
Standard ISO 15552 (VDMA 24562)
Cylinder design Smooth profile
Bore 40 mm
Stroke 750 mm
Action Double acting, adjustable pneumatic cushioning both ends
Piston Aluminium, with magnet for sensors
Piston rod Stainless steel, male thread
Piston rod diameter 16 mm
Theoretical force at 6 bar (out) 750 N
Theoretical force at 6 bar (return) 630 N
Port thread G 1/8
Maximum Operating Pressure 10 bar
Temperature Range -20 °C to +80 °C (standard seals)
Working media Filtered compressed air, lubricated or non-lubricated
Catalogue reference PDE3570TCEN, p.4, 6, 7, 8, 9, 12, 13, 16, 17, 18
