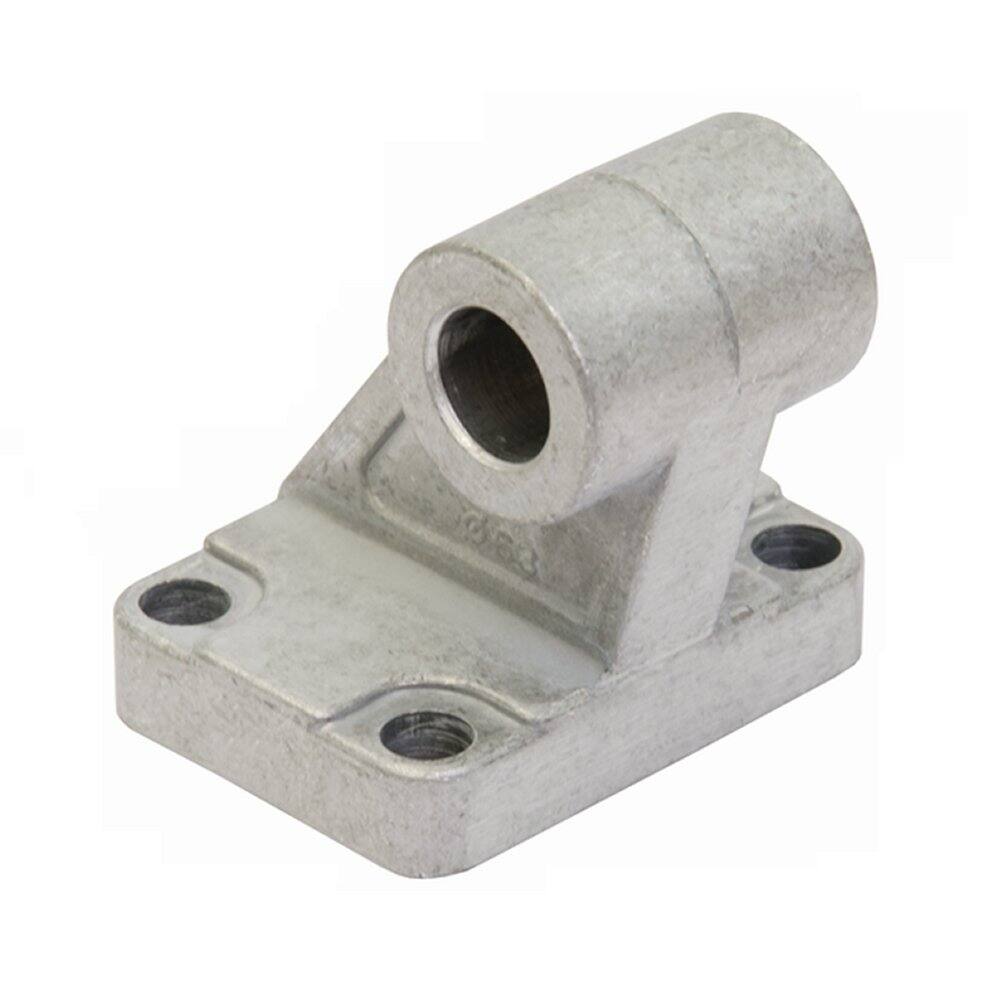

Parker ISO 15552, ISO 21287 Pivot Bracket c/w Rigid Bearing AB7 40mm
Parker Pivot bracket for ISO 15552 cylinders, Ø40 mm.
Overview
Parker ISO 15552, ISO 21287 Pivot Bracket c/w Rigid Bearing AB7 40mm (part number P1C-4LMDB) is a Parker pivot bracket for ISO 15552 pneumatic cylinders of 40 mm bore. It carries the trunnion pins of a trunnion-mounted cylinder.
Dimensions follow ISO 15552, ISO 21287, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.
Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.
Specifications
| Product type | Pivot bracket |
|---|---|
| Series | Parker P1C / P1F cylinder mountings |
| For cylinder bore | 40 mm |
| Compatible cylinder standards | ISO 15552, ISO 21287 |
| Pressure rating | Not applicable — the assembly is rated by the cylinder |
| Catalogue reference | Parker P1F Small Bore Cyl, p.17, 27, 31 |
