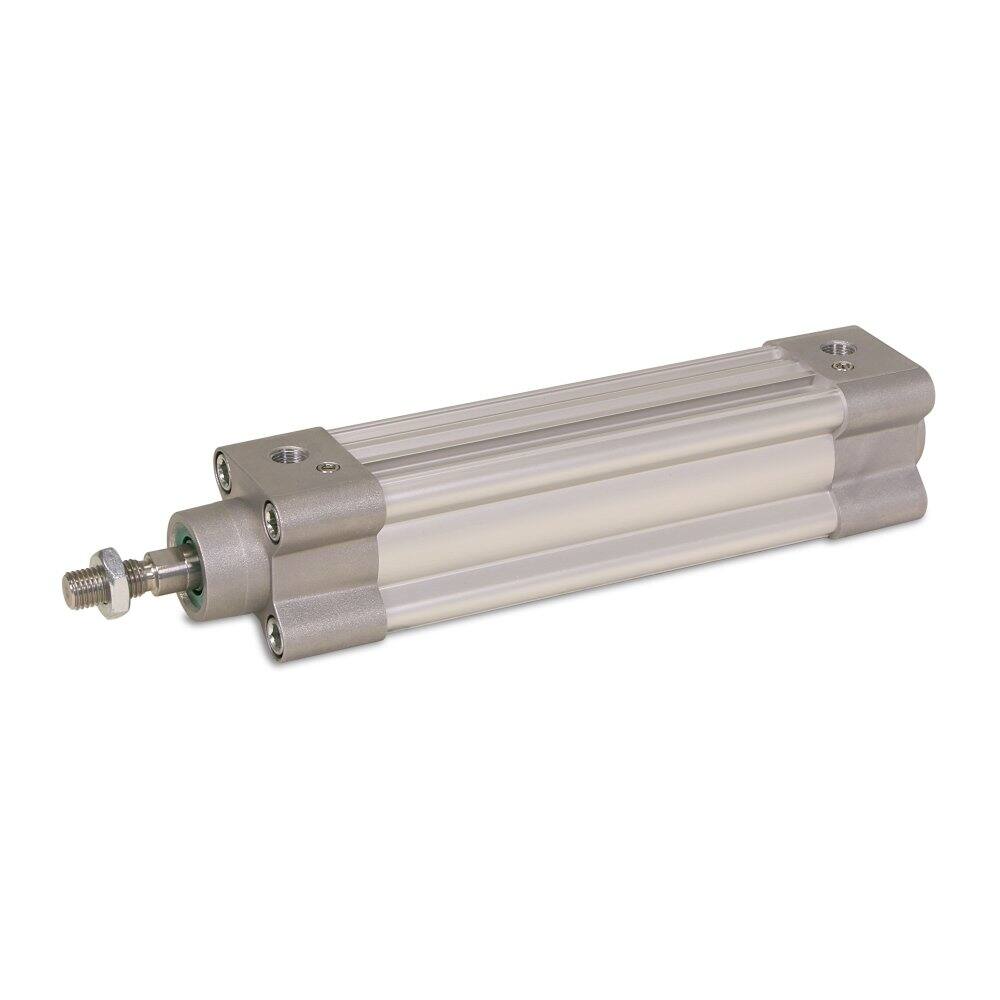

Parker P1F Series ISO 15552 40mm Bore x 100mm Stroke Smooth Profile Cylinder HIGH Temp w/o Magnet
R7962,82Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Stroke
100 mm
Bore
40 mm
Overview
Parker P1F Series ISO 15552 40mm Bore x 100mm Stroke Smooth Profile Cylinder HIGH Temp w/o Magnet
Specifications
| Standard | ISO 15552 (VDMA 24562) |
|---|---|
| Cylinder design | Smooth profile |
| Bore | 40 mm |
| Stroke | 100 mm |
| Action | Double acting, adjustable cushioning both ends |
| Temperature Range | -10°C to +150°C (high temperature) |
| Piston rod | Stainless steel, male thread |
| Piston | Aluminium, without magnet |
| Maximum Operating Pressure | 10 bar |
| Working media | Filtered compressed air, lubricated or non-lubricated |
| Theoretical force at 6 bar (out) | 754 N |
| Theoretical force at 6 bar (return) | 633 N |
| Piston rod diameter | 16 mm |
| Port thread | G1/4 |
| Catalogue reference | PDE3570TCEN, p.4, 6, 7, 8, 9, 12, 13, 16, 17, 18 |
