Product type
Foot bracket MS1
Series
Parker P1C / P1F cylinder mountings
For cylinder bore
40 mm

Overview

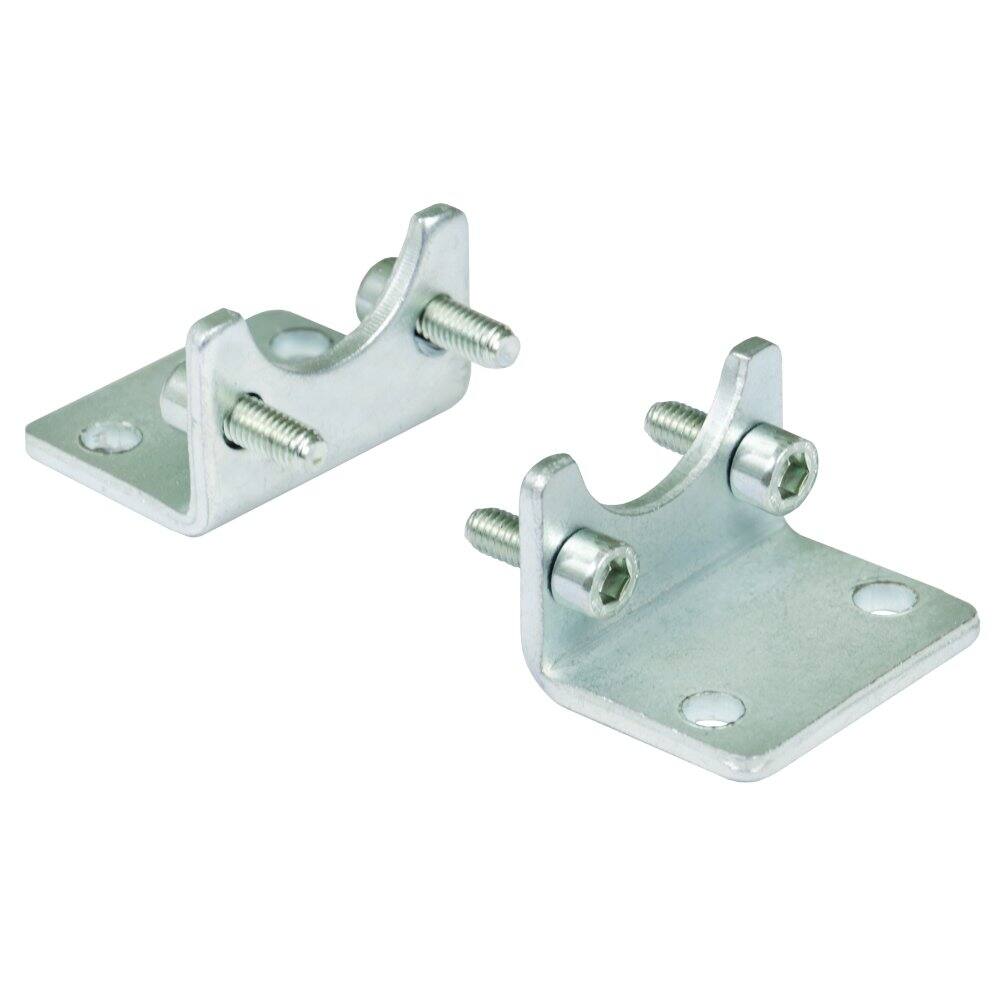

Parker ISO 15552, ISO 21287 Foot Brackets MS1 40mm (part number P1C-4LMF) is a Parker foot bracket MS1 for ISO 15552 pneumatic cylinders of 40 mm bore. It fixes the cylinder to a machine bed or frame by its end caps.

Dimensions follow ISO 15552, ISO 21287, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.

Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.

Source: appliedgroup.co.za ↗

Specifications

Product type Foot bracket MS1
Series Parker P1C / P1F cylinder mountings
For cylinder bore 40 mm
Compatible cylinder standards ISO 15552, ISO 21287
Pressure rating Not applicable — the assembly is rated by the cylinder
Catalogue reference Parker Pneumatic P1P Pneumatic Cylinders Catalogue PDE2660TCUK, p.17, 18
