Enidine ECO S 25 MC-1 Non-Adjustable Shock Absorber. M14 x 1.5 - 12.7mm Stroke. Threaded Nose. Single Orifice
Enidine ECO S 25 MC-1 — non-adjustable shock absorber, M14 x 1.5, 12.7 mm stroke, 24 Nm/cycle.
Overview

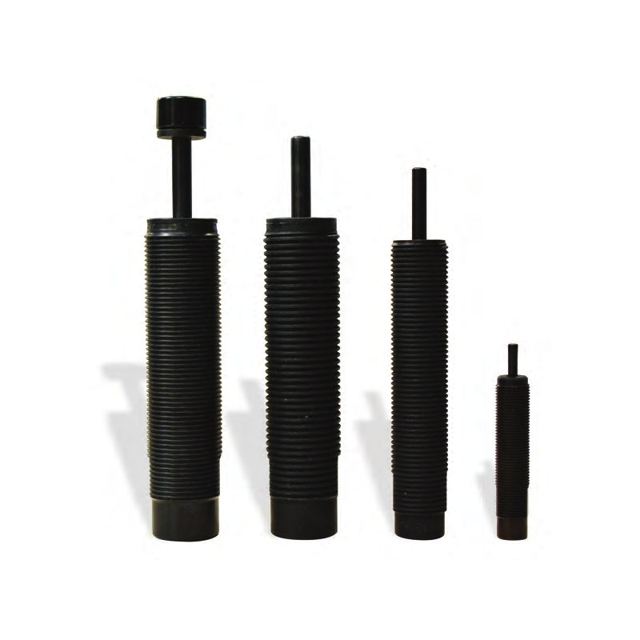

The Enidine ECO S Series are short-stroke versions of the non-adjustable, self-compensating ECO hydraulic shock absorbers, giving the same thread size and energy capacity in a shorter body where mounting space is limited.
Enidine ECO S 25 MC-1 (part number MT238431): M14 x 1.5 thread (metric coarse thread), 12.7 mm stroke, up to 24 Nm per cycle, 44 Nm/cycle emergency maximum, 37 400 Nm/h, maximum reaction force 2 800 N, maximum propelling force 890 N, mass 68 g. Damping constant -1: the orifice number sets the velocity range the unit is optimised for — select it from the ECO sizing curves by effective weight and impact velocity. One hex jam nut is included with every shock absorber; flanges, stop collars, side-load adaptors and urethane striker caps are available as accessories.
Typical applications: Deceleration of moving loads — factory automation, packaging, material handling.
Operating conditions: Hydraulic (sealed, self-contained); -12 °C to +66 °C.
Genuine ITT Enidine product supplied by Applied Group, ITT Enidine's distributor in South Africa. Full technical data, dimensions and sizing curves are in the attached catalogue extract.
Specifications
| Series | Enidine ECO S 25 |
|---|---|
| Model | ECO S 25 MC-1 |
| Type | Non-adjustable shock absorber |
| Thread | M14 x 1.5 |
| Stroke | 12.7 mm |
| Orifice | Single orifice |
| Max energy per cycle | 24 Nm |
| Emergency max energy | 44 Nm/cycle |
| Max energy per hour | 37 400 Nm/h |
| Max reaction force | 2 800 N |
| Max propelling force | 890 N |
| Mounting style | Threaded nose |
| Mass | 68 g |
| Temperature range | -12 °C to +66 °C |
| Working media | Hydraulic (sealed, self-contained) |
| Application | Deceleration of moving loads — factory automation, packaging, material handling |
| Catalogue reference | ITT Enidine Shock Absorbers, Rate Controls & Wire Rope Isolators (A4 EN), p.50 |
