Material
Galvanised steel
Product type
Rod clevis AP2
Series
Parker P1C / P1F cylinder mountings

Overview

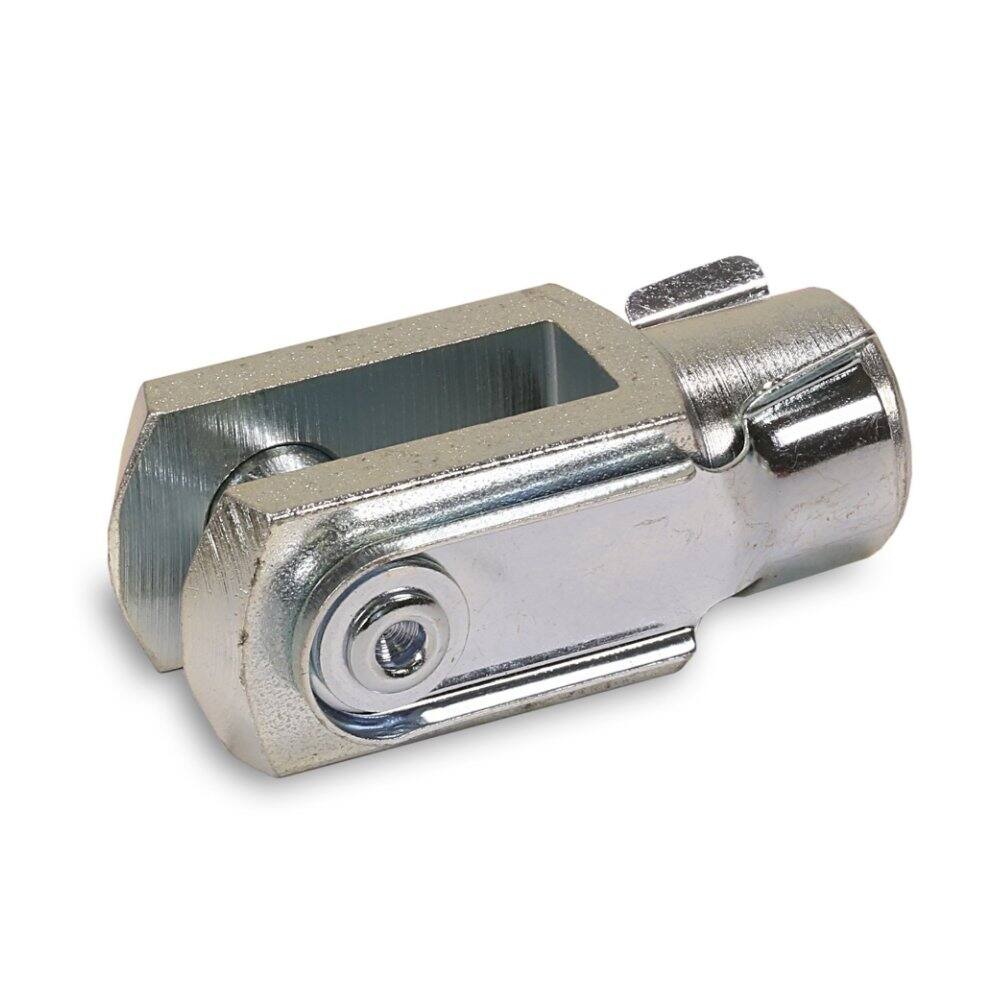

Parker ISO 15552 Clevis AP2 Galv Steel 320mm (part number P1C-4WRC) is a Parker rod clevis AP2 for ISO 15552 pneumatic cylinders of 320 mm bore. It connects the piston rod to the load through a pinned clevis.

Dimensions follow ISO 15552, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.

Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.

Specifications

Product type Rod clevis AP2
Series Parker P1C / P1F cylinder mountings
For cylinder bore 320 mm
Compatible cylinder standards ISO 15552
Material Galvanised steel
Pressure rating Not applicable — the assembly is rated by the cylinder
Catalogue reference PDE2667TCEN, p.11, 12, 13, 14, 15, 16
