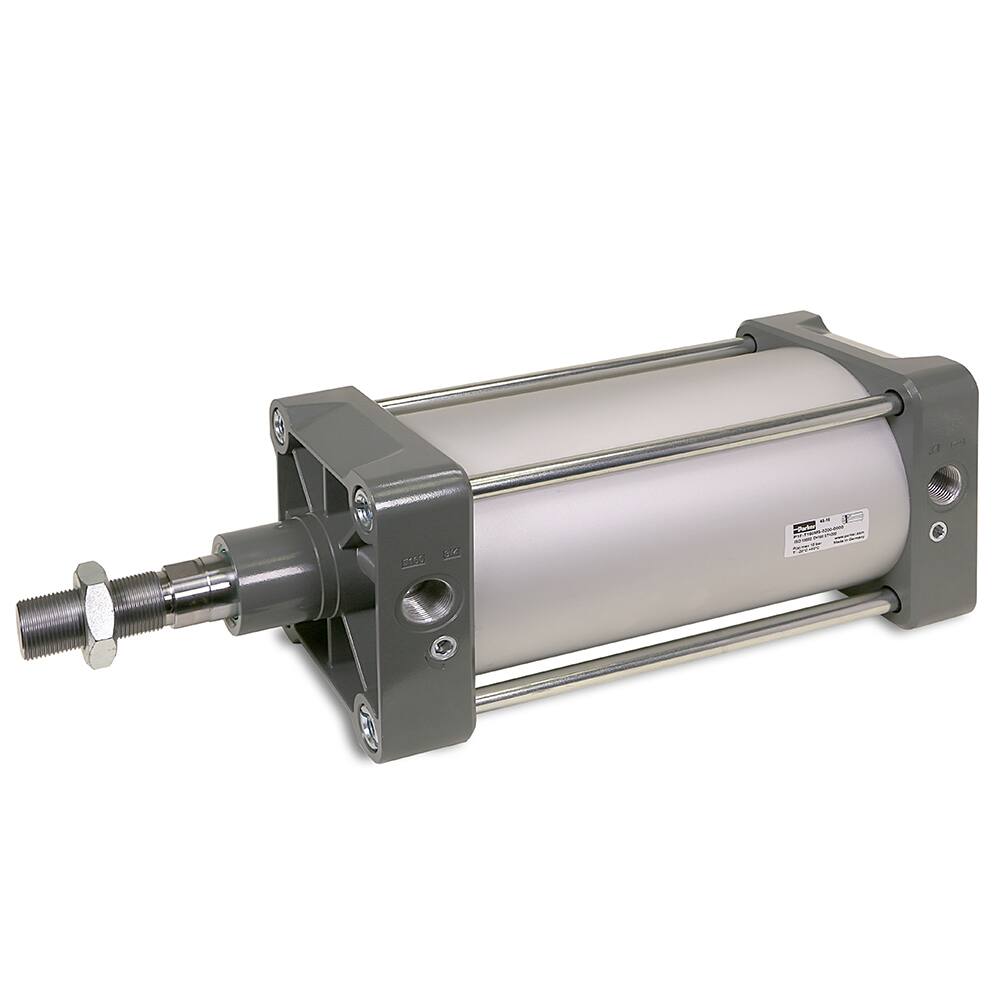

Parker P1F Series ISO 15552 320mm Bore x 1000mm Stroke + 150mm Rod Ext Tie-Rod Cylinder HIGH Temp c/w Magnet

Name: Parker P1F Series ISO 15552 320mm Bore x 1000mm Stroke + 150mm Rod Ext Tie-Rod Cylinder HIGH Temp c/w Magnet - Applied Group of Companies
Brand: Parker Hannifin
SKU: P1F-T320FSX1000-P150
Availability: BackOrder

Price on RequestLogin for your trade price excl. VAT · per unit

Trade customer? Sign in for your tier price.

Out of stock · Replenishment on order

Or request a confirmed lead time for this SKU →

Maximum Operating Pressure

10 bar

Stroke

1000 mm

Bore

320 mm

Overview

Parker P1F Series ISO 15552 320mm Bore x 1000mm Stroke + 150mm Rod Ext Tie-Rod Cylinder HIGH Temp c/w Magnet

Specifications

Standard	ISO 15552 (VDMA 24562)
Cylinder design	Tie-rod
Bore	320 mm
Stroke	1000 mm
Action	Double acting, adjustable cushioning both ends
Temperature Range	-10°C to +150°C (high temperature)
Piston rod	Stainless steel, male thread
Piston	Aluminium, with magnet
Maximum Operating Pressure	10 bar
Working media	Filtered compressed air, lubricated or non-lubricated
Options	Rod extension / trunnion option P150
Catalogue reference	PDE2667TCEN, p.4, 5, 6, 7, 8, 9, 10, 11, 17

Documents

Catalogues Literature

PDE2667TCEN – catalogue pages for this range (P1F-T tie-rod, Ø160-320 mm; p.4, 5, 6, 7, 8, 9, 10, 11, 17)

PDF ↗

Parker P1F-T Large Bore Cylinders ISO 15552 Ø160-320 mm (PDE2667TCEN) – full catalogue

PDF ↗
