Product type
Swivel eye bracket MP6
Series
Parker P1C / P1F cylinder mountings
For cylinder bore
63 mm

Overview

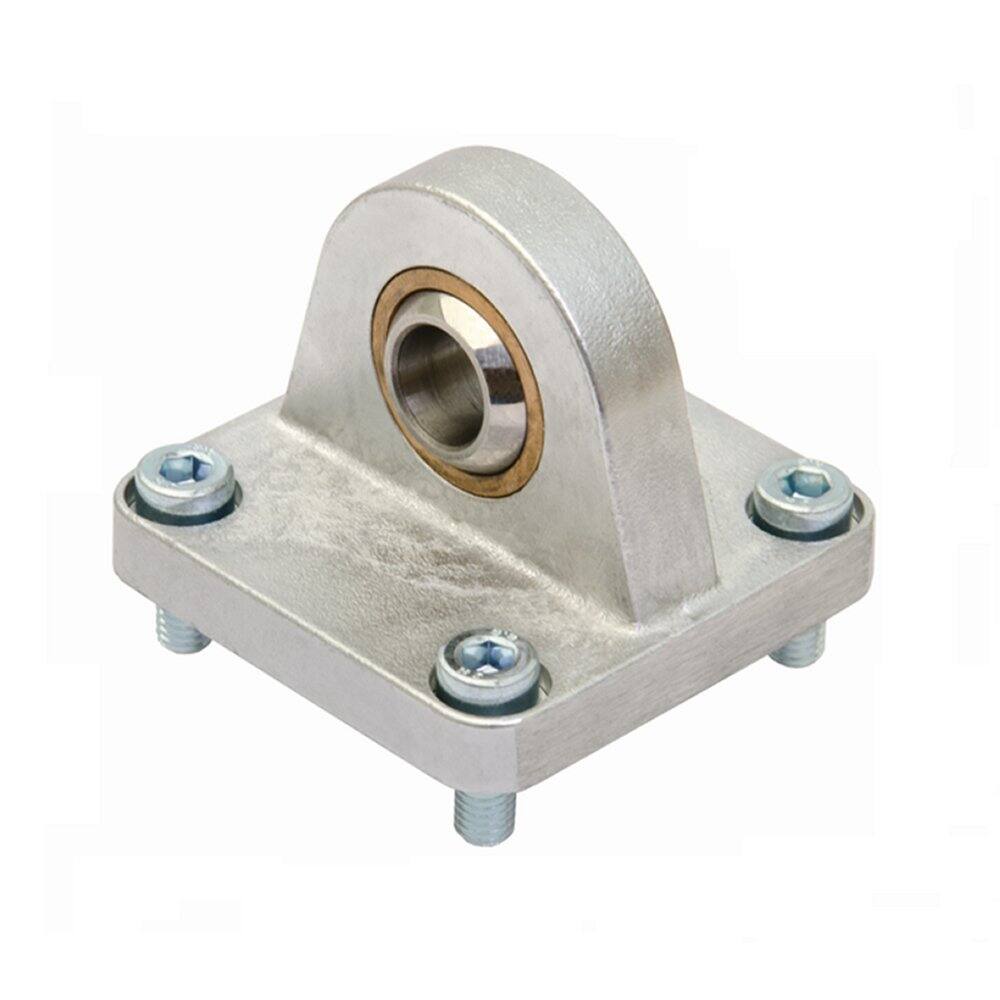

Parker ISO 15552, ISO 21287 Swivel Eye Bracket MP6 63mm (part number P1C-4NMSB) is a Parker swivel eye bracket MP6 for ISO 15552 pneumatic cylinders of 63 mm bore. It gives the cylinder a self-aligning spherical pivot at the cap end.

Dimensions follow ISO 15552, ISO 21287, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.

Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.

Source: appliedgroup.co.za ↗

Specifications

Product type Swivel eye bracket MP6
Series Parker P1C / P1F cylinder mountings
For cylinder bore 63 mm
Compatible cylinder standards ISO 15552, ISO 21287
Pressure rating Not applicable — the assembly is rated by the cylinder
Catalogue reference Parker P1F Small Bore Cyl, p.17, 27, 33
