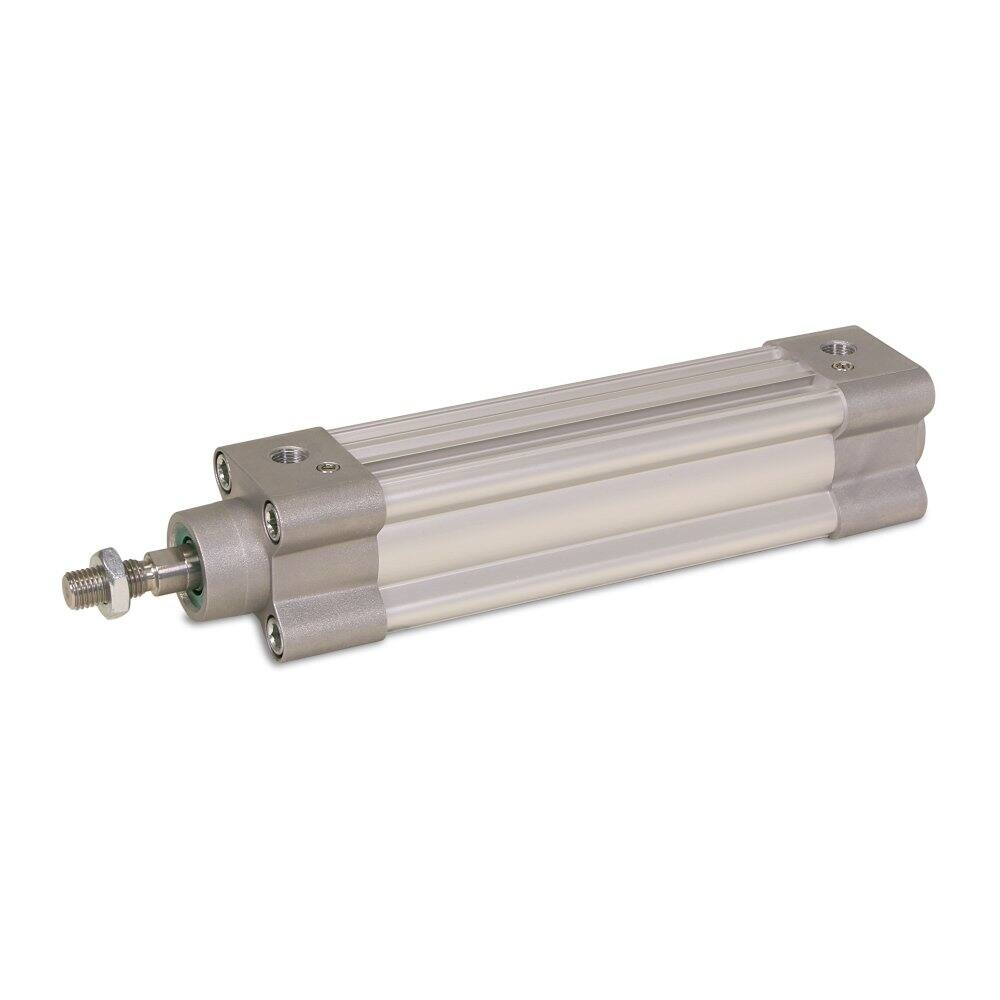

Parker P1F Series ISO 15552 63mm Bore x 100mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
R3014,04Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Stroke
100 mm
Bore
63 mm
Overview
Parker P1F Series ISO 15552 63mm Bore x 100mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
Specifications
| Standard | ISO 15552 (VDMA 24562) |
|---|---|
| Cylinder design | Smooth profile |
| Bore | 63 mm |
| Stroke | 100 mm |
| Action | Double acting, adjustable cushioning both ends |
| Temperature Range | -20°C to +80°C (standard) |
| Piston rod | Stainless steel, male thread |
| Piston | Standard, with magnet |
| Maximum Operating Pressure | 10 bar |
| Working media | Filtered compressed air, lubricated or non-lubricated |
| Theoretical force at 6 bar (out) | 1870 N |
| Theoretical force at 6 bar (return) | 1682 N |
| Piston rod diameter | 20 mm |
| Port thread | G3/8 |
| Catalogue reference | Parker Pneumatic Concise Catalogue PNDE3800DSUK, p.4 |
