Parker P1F Series ISO 15552 63mm Bore x 250mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
Parker P1F ISO 15552 smooth profile cylinder, Ø63 mm × 250 mm stroke, magnetic piston, double acting, cushioned, 10 bar.
Overview

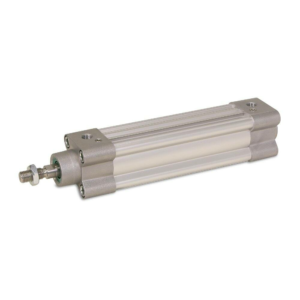

Parker P1F Series ISO 15552 63mm Bore x 250mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet (part number P1F-S063MS-0250-0000) is a Parker P1F double-acting pneumatic cylinder to ISO 15552 (VDMA 24562), 63 mm bore × 250 mm stroke, in the smooth profile design.
Adjustable pneumatic cushioning at both ends lets the end-of-stroke deceleration be tuned on the machine. The magnetic piston works with Parker P8S cylinder sensors for position feedback; the 20 mm stainless steel piston rod carries a male thread for standard ISO rod-end accessories, and the G 1/4 ports accept LF3000 push-in fittings directly. Theoretical force at 6 bar: 1 870 N extending, 1 680 N retracting.
Rated to 10 bar on filtered compressed air, lubricated or non-lubricated, with standard seals from -20 °C to +80 °C. Mounts with the ISO 15552 accessory range — foot brackets (MS1), front and rear flanges (MF1/MF2), clevis brackets (MP2/MP4), swivel eye brackets (MP6), pivot brackets (AT4) and rod-end clevises and eyes (AP2/AP6) — all listed under P1F mounting accessories. Interchangeable with any ISO 15552 cylinder of the same bore and stroke.
Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions and the full option code are in the attached catalogue extract.
Specifications
| Series | Parker P1F |
|---|---|
| Standard | ISO 15552 (VDMA 24562) |
| Cylinder design | Smooth profile |
| Bore | 63 mm |
| Stroke | 250 mm |
| Action | Double acting, adjustable pneumatic cushioning both ends |
| Piston | Aluminium, with magnet for sensors |
| Piston rod | Stainless steel, male thread |
| Piston rod diameter | 20 mm |
| Theoretical force at 6 bar (out) | 1 870 N |
| Theoretical force at 6 bar (return) | 1 680 N |
| Port thread | G 1/4 |
| Maximum Operating Pressure | 10 bar |
| Temperature Range | -20 °C to +80 °C (standard seals) |
| Working media | Filtered compressed air, lubricated or non-lubricated |
| Catalogue reference | PDE3570TCEN, p.4, 6, 7, 8, 9, 12, 13, 16, 17, 18 |
