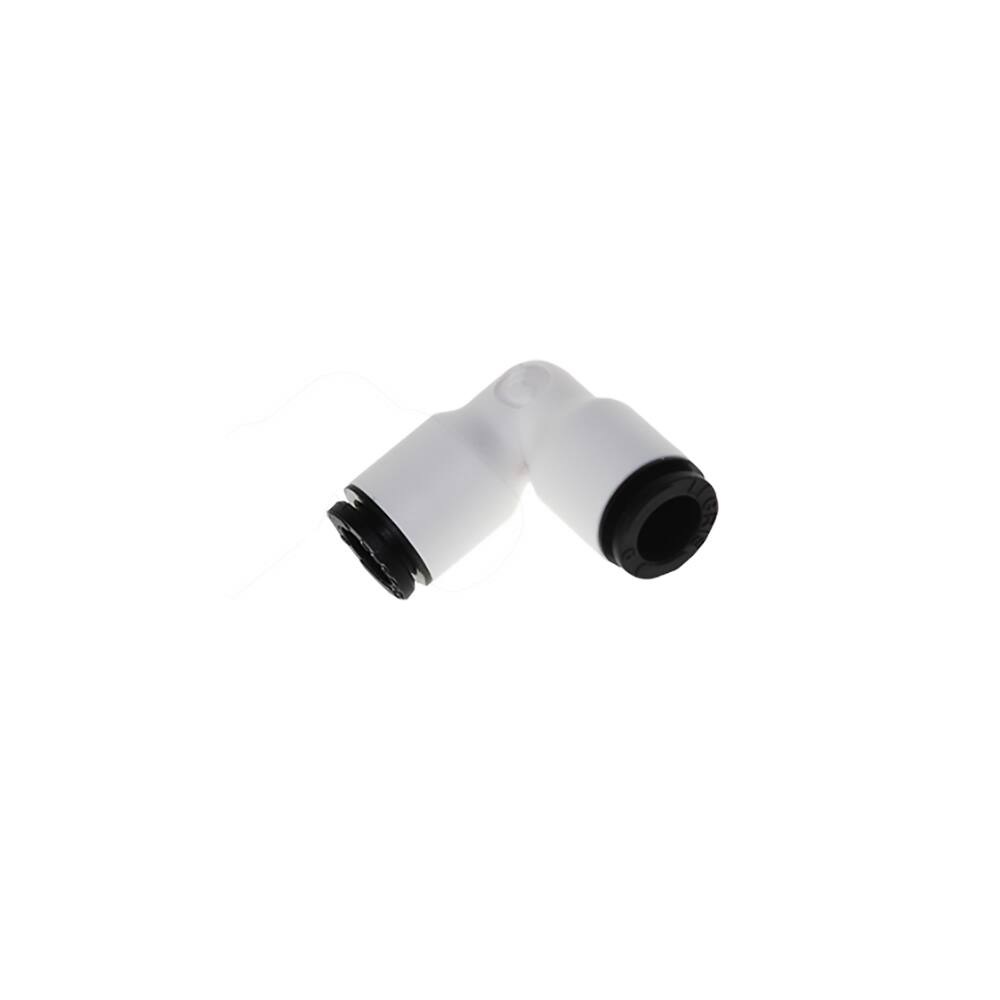

Parker Legris Cleanfit LF6800 10mm Elbow
Overview
The Parker Legris Cleanfit LF6800 10mm Elbow is a push-to-connect tube-to-tube fitting designed for pharmaceutical and medical gas applications requiring reliable, sterile connections.
This elbow fitting excels in low-pressure pneumatic and fluid systems where quick, tool-free assembly is essential. The 10mm outer diameter tubing accepts both equal and unequal configurations, making it adaptable to various system layouts. Its bio-based polymer body combines lightweight design with environmental responsibility, whilst the stainless steel gripping ring ensures secure, repeatable connections without degradation over repeated connect-disconnect cycles.
Constructed with EPDM seals and RoHS compliant materials, this fitting operates safely from -10°C to 95°C, suiting temperature-sensitive pharmaceutical processes and medical gas delivery systems. The compact elbow profile optimises space efficiency in crowded equipment layouts and instrument panels.
Industries including pharmaceuticals, medical device manufacturing, and healthcare process automation rely on this connector range for hygienic, dependable fluid transfer.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.005 kg |
| For Fluid Type | Air (Breathing Air). Other Fluids: Please consult us., Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us |
| Product Type | Tube-to-Tube Fittings |
| Quantity per Box | 10 |
| Gripping Ring | Stainless Steel |
| Connection 3 Tube Outside Diameter | 10 mm (O.D.) |
| Connection 2 Tube Outside Diameter | 10 mm (O.D.) |
| Shape | Elbow - Equal and Unequal |
| Specifications Met | CGA G4.1, VDI 2083-8 (in progress), BAM (grease certification residue), EN 12021 (< 0,1 Mg/m3), RoHS DI: 2002/95/EC, REACH DI: 1907/2006, ISO 15001 (< 30 Bar), RoHS DI: 2011/65/EC |
| Application | Respiratory, Laboratory, Bio-Fluid Management, Clean Rooms, O2 Circuits, Pharmaceutical Process |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
