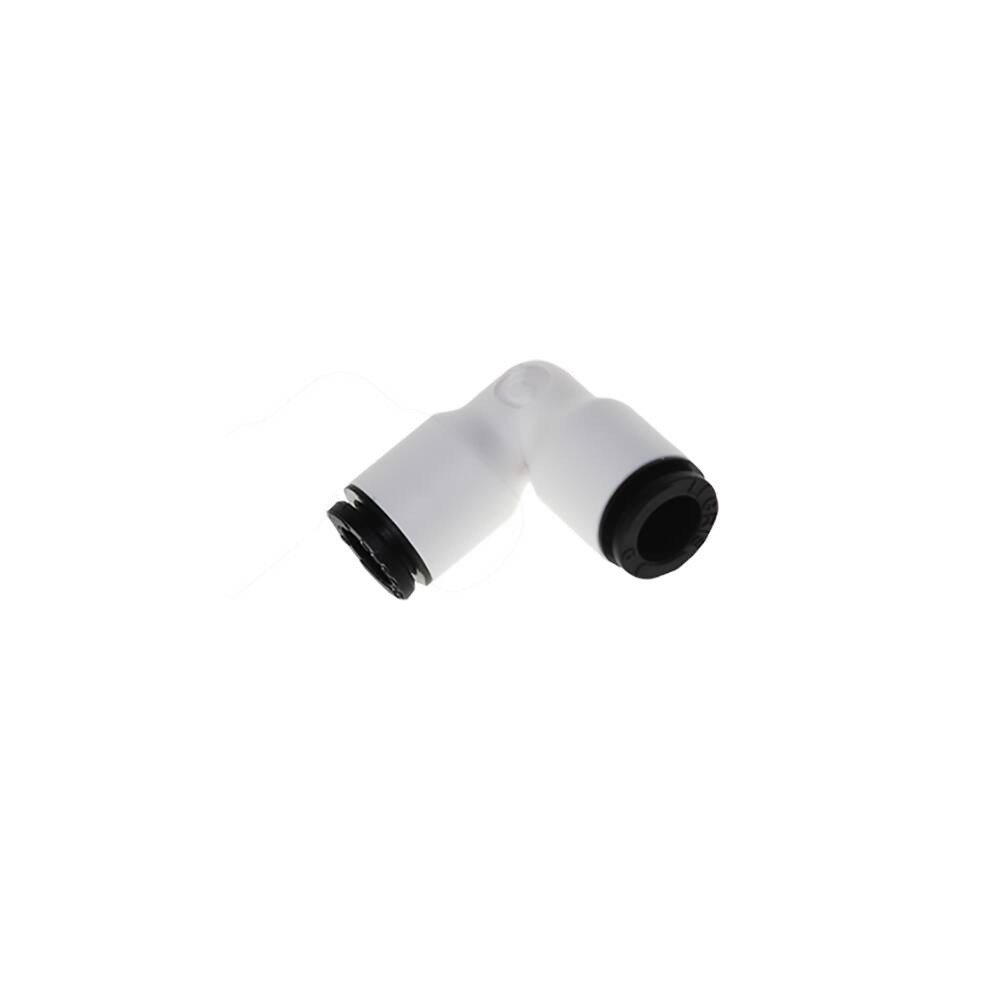

Parker Legris Cleanfit LF6800 12mm Elbow
Overview
The Parker Legris Cleanfit LF6800 12mm Elbow is a tube-to-tube push-to-connect fitting designed for pharmaceutical process applications and regulated low-pressure fluid systems.
This elbow fitting delivers reliable performance in sensitive applications where component integrity matters. The bio-based polymer body combines lightweight design with excellent chemical resistance, whilst the stainless steel gripping ring ensures secure, repeatable connections without ferrules or additional tools. Suitable for 12mm O.D. tubing on both ports, the fitting operates reliably between −10 °C and 95 °C and meets CGA G4.1 specifications. The EPDM seal material provides compatibility with a wide range of process fluids, making it suitable for instrument air, water, and other approved media in low-pressure distribution networks.
Ideal for pharmaceutical manufacturing, food and beverage processing, and precision instrumentation environments where hygiene, reliability and ease of maintenance are essential.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.010 kg |
| For Fluid Type | Breathing, Neutral & Pure Medical Gases, Other Fluids: Please Consult Us |
| Product Type | Tube-to-Tube Fittings |
| Quantity per Box | 10 |
| Gripping Ring | Stainless Steel |
| Connection 3 Tube Outside Diameter | 12 mm (O.D.) |
| Connection 2 Tube Outside Diameter | 12 mm (O.D.) |
| Shape | Elbow - Equal and Unequal |
| Application | Respiratory, Clean Rooms, O2 Circuits, Bio-Fluid Management, Laboratory, Pharmaceutical Process |
| Specifications Met | EN 12021 (< 0,1 Mg/m3), RoHS DI: 2002/95/EC, ISO 15001 (< 30 Bar), REACH DI: 1907/2006, RoHS 2011/65/EC, VDI 2083-8 (in progress), BAM (grease certification residue), CGA G4.1 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
