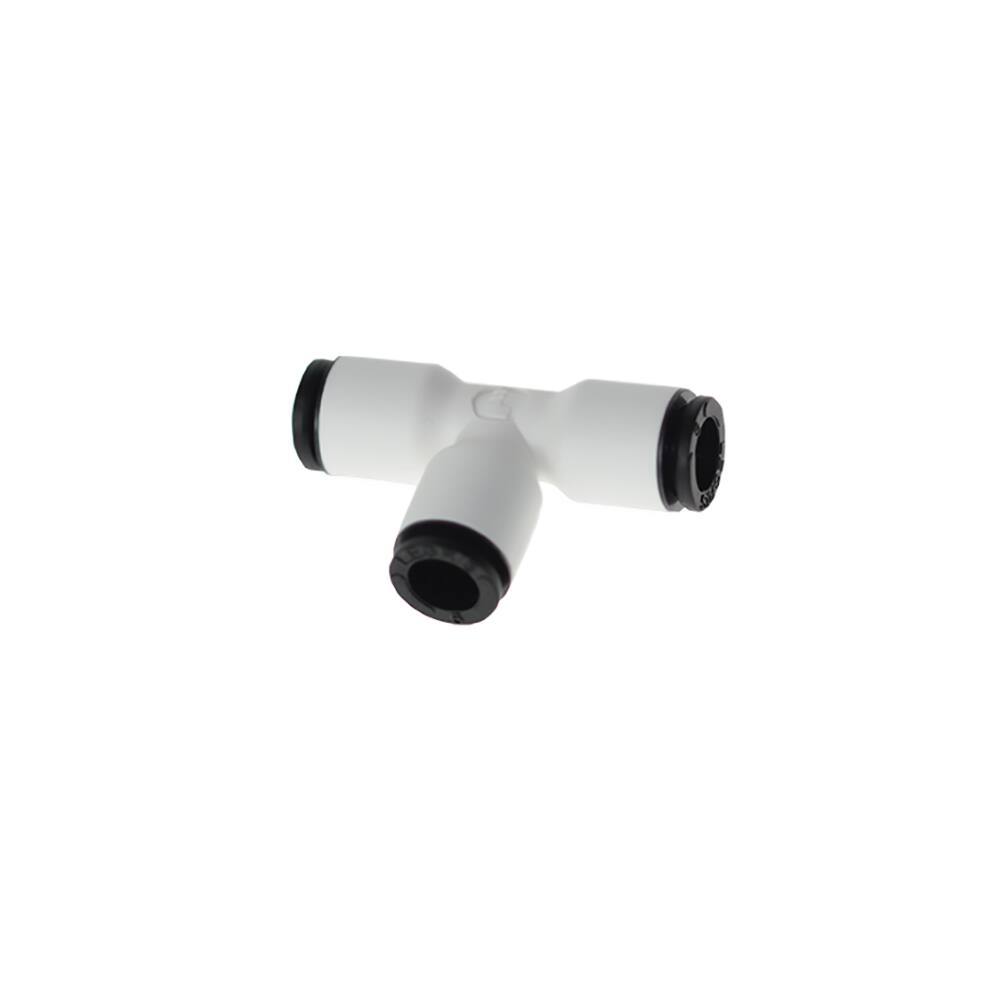

Parker Legris Cleanfit LF6800 10mm Equal Tee
Overview
The Parker Legris Cleanfit LF6800 10mm Equal Tee is a push-to-connect tube fitting designed for clean room applications and medical gas distribution systems.
This equal tee connector joins three 10mm O.D. tubes in a single compact component, making it ideal for branching low-pressure pneumatic and fluid lines without additional manifold complexity. The bio-based polymer body offers a lightweight, corrosion-resistant construction whilst maintaining compatibility with neutral and pure medical gases across temperature ranges from −10 °C to 95 °C. EPDM seals ensure reliable containment, and the stainless steel gripping ring delivers secure, repeatable connections that can be installed and reconfigured without specialised tools.
VDI 2083-8 compliance (in progress) supports its use in controlled environments where cleanliness standards are paramount. Supplied in boxes of 10 units, these fittings serve pharmaceutical manufacturing, medical device assembly, food processing, and other industries where hygienic pneumatic systems are essential.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.009 kg |
| For Fluid Type | Air (Breathing Air). Other Fluids: Please consult us., Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us |
| Product Type | Tube-to-Tube Fittings |
| Quantity per Box | 10 |
| Gripping Ring | Stainless Steel |
| Connection 3 Tube Outside Diameter | 10 mm (O.D.) |
| Connection 2 Tube Outside Diameter | 10 mm (O.D.) |
| Shape | Equal Tee |
| Application | Bio-Fluid Management, Respiratory, Laboratory, O2 Circuits, Pharmaceutical Process, Clean Rooms |
| Specifications Met | RoHS DI: 2011/65/EC, BAM (grease certification residue), CGA G4.1, RoHS DI: 2002/95/EC, ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), REACH DI: 1907/2006, VDI 2083-8 (in progress) |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
