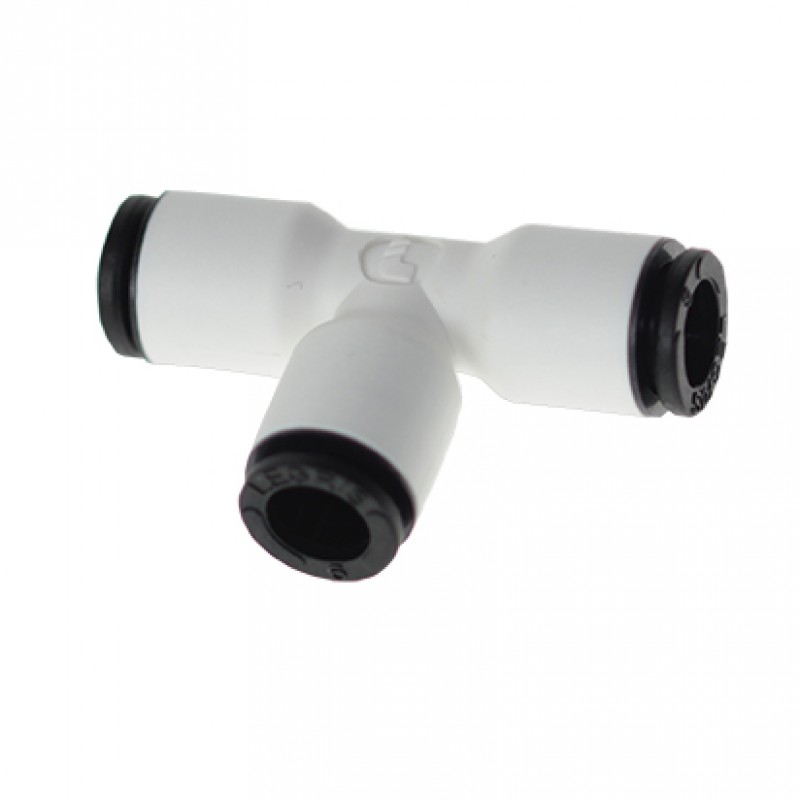

Parker Legris Cleanfit LF6800 6mm Equal Tee
Overview
The Parker Legris Cleanfit LF6800 6mm Equal Tee is a push-to-connect tube fitting designed for medical gas applications in pharmaceutical process environments.
This equal tee connector joins three 6 mm O.D. tubes in a symmetrical configuration, making it ideal for branching air and gas distribution networks in low-pressure systems. The body is manufactured from bio-based polymer, reducing environmental impact without compromising reliability, whilst the stainless steel gripping ring and EPDM seal material ensure secure, leak-free connections across the operating temperature range of −10 °C to 95 °C. Push-to-connect technology eliminates the need for tools or special fittings knowledge, enabling rapid assembly and reconfiguration of pneumatic circuits. RoHS compliant and supplied in boxes of 10, this fitting serves pharmaceutical manufacturing, medical gas delivery, laboratory instrumentation, and precision process automation applications.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.006 kg |
| For Fluid Type | Air (Breathing Air). Other Fluids: Please consult us., Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us |
| Product Type | Tube-to-Tube Fittings |
| Quantity per Box | 10 |
| Connection 3 Tube Outside Diameter | 6 mm (O.D.) |
| Gripping Ring | Stainless Steel |
| Connection 2 Tube Outside Diameter | 6 mm (O.D.) |
| Shape | Equal Tee |
| Specifications Met | REACH DI: 1907/2006, VDI 2083-8 (in progress), CGA G4.1, ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), RoHS DI: 2011/65/EC, BAM (grease certification residue), RoHS DI: 2002/95/EC |
| Application | Respiratory, Bio-Fluid Management, Laboratory, O2 Circuits, Clean Rooms, Pharmaceutical Process |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
