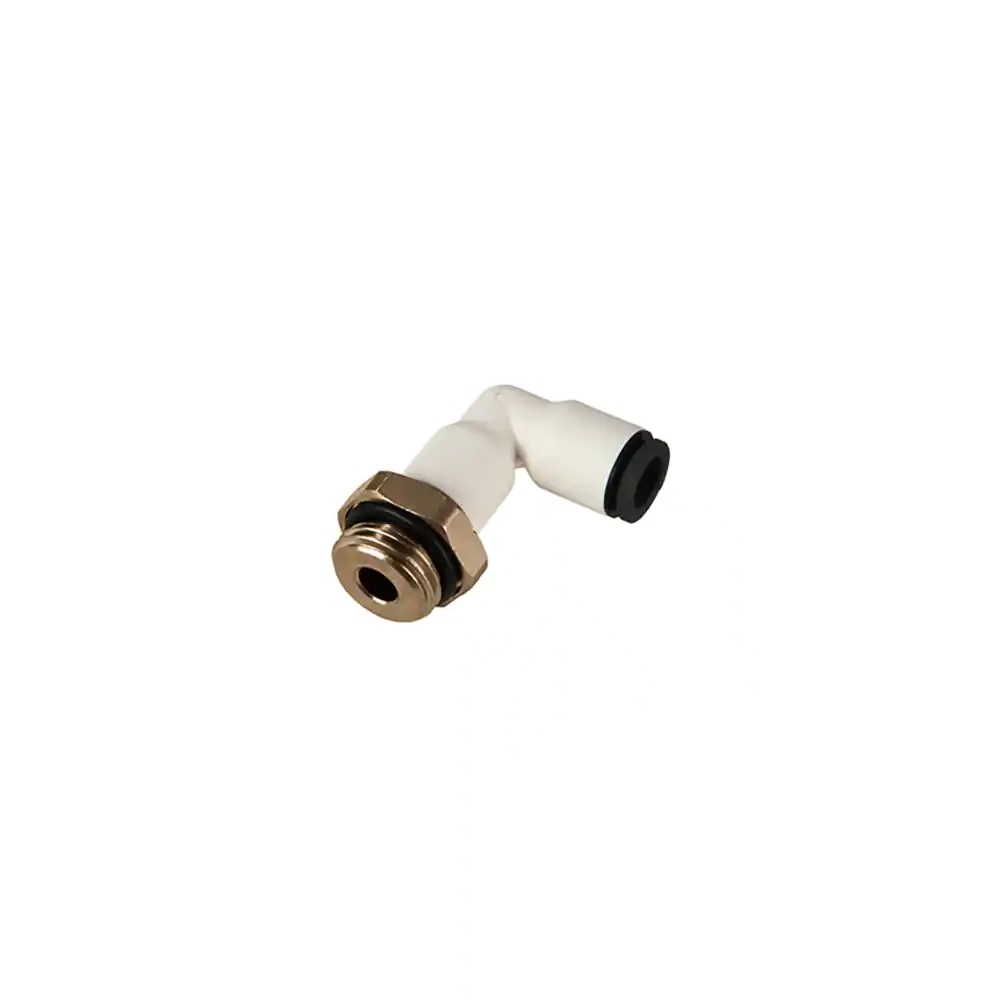

Parker Legris Cleanfit LF6800 4mm - 1/8"Bspp Male Stud Elbow
Overview
The Parker Legris Cleanfit LF6800 4mm to 1/8" BSPP male stud elbow is a push-to-connect fitting designed for breathing air and pharmaceutical process applications. This elbow connector enables reliable direction changes in low-pressure pneumatic systems whilst maintaining secure, leak-free performance.
The fitting combines a 4mm metric tube connection with a G 1/8 BSPP male thread, making it ideal for integrating instrument air and process air lines into manifolds and control equipment. Its body is constructed from bio-based polymer with a stainless steel gripping ring, delivering both durability and resistance to corrosion in demanding environments. The EPDM seal material ensures compatibility with breathing air applications, whilst the compact elbow design optimises space efficiency in tight installation areas. Operating reliably across a temperature range of −10 °C to 95 °C, this fitting meets VDI 2083-8 standards and suits pharmaceutical, food & beverage, and industrial automation sectors where process air purity and system integrity are essential.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.002 kg |
| For Fluid Type | Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us, Air (Breathing Air). Other Fluids: Please consult us. |
| Product Type | Stud Fittings |
| Quantity per Box | 10 |
| Connection 1 Thread Size | G 1/8 |
| Connection 2 Tube Outside Diameter | 4 mm (O.D.) |
| Gripping Ring | Stainless Steel |
| Connection 1 Type | BSPP |
| Shape | Elbow - Stud, Male BSPP and Metric Thread |
| Specifications Met | RoHS DI: 2002/95/EC, RoHS DI: 2011/65/EC, BAM (grease certification residue), ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), CGA G4.1, REACH DI: 1907/2006, VDI 2083-8 (in progress) |
| Application | Bio-Fluid Management, Laboratory, Respiratory, O2 Circuits, Clean Rooms, Pharmaceutical Process |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
