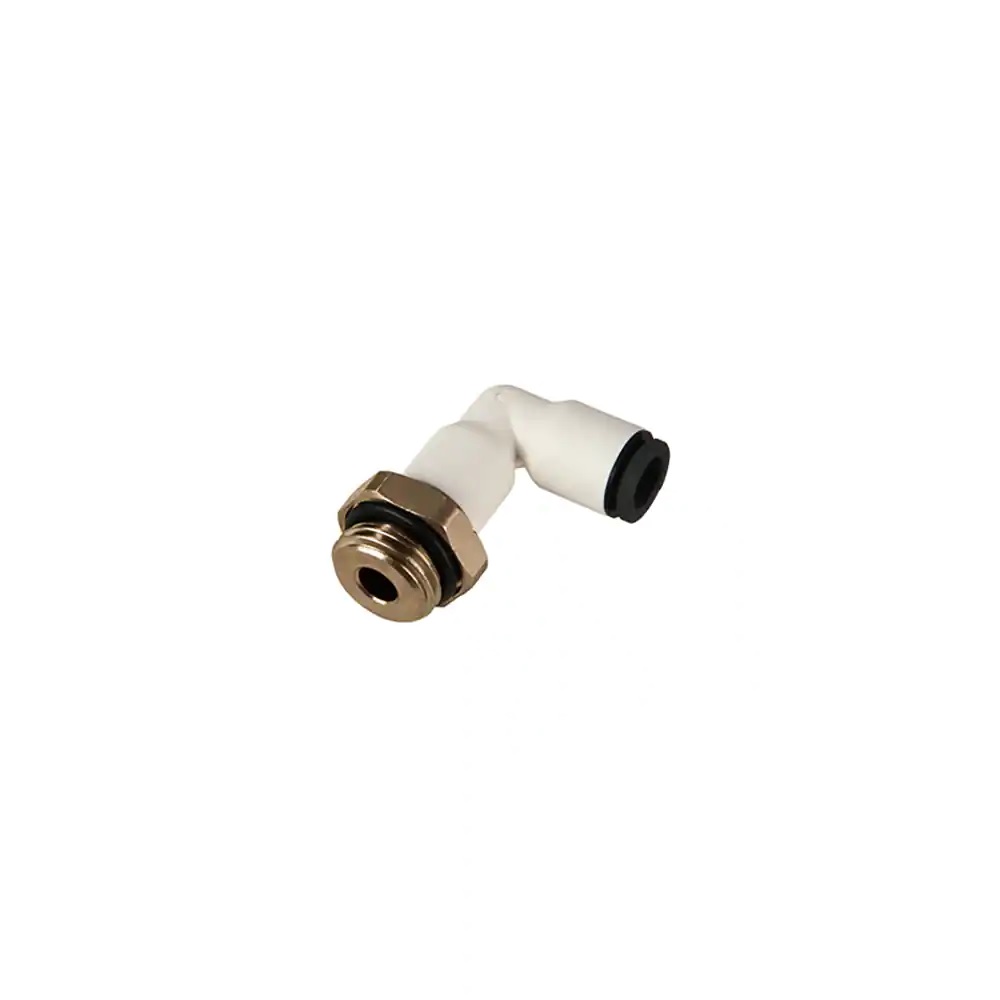

Parker Legris Cleanfit LF6800 6mm - 1/8"Bspp Male Stud Elbow
Overview
The Parker Legris Cleanfit LF6800 6mm to 1/8" BSPP male stud elbow is a push-to-connect fitting designed for medical gas applications and bio-fluid management systems.
This elbow fitting excels in low-pressure pneumatic and instrumentation circuits where space and ease of assembly are priorities. The push-to-connect design enables tool-free installation whilst maintaining secure, leak-free connections. Constructed from bio-based polymer with a stainless steel gripping ring and EPDM seals, the fitting delivers reliable performance across a working temperature range of −10 °C to 95 °C, making it suitable for both ambient and moderately elevated environments. The 6 mm outer diameter tube connection pairs with a G 1/8 BSPP male thread, providing straightforward integration into existing manifolds and valve blocks. RoHS compliant and lightweight at just 3 grams per unit, this fitting is ideal for OEM assembly and retrofit applications.
Widely specified in medical device manufacturing, laboratory instrumentation, and analytical equipment where gas purity and connection reliability are essential.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.003 kg |
| For Fluid Type | Air (Breathing Air). Other Fluids: Please consult us., Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us |
| Product Type | Stud Fittings |
| Quantity per Box | 10 |
| Connection 1 Thread Size | G 1/8 |
| Gripping Ring | Stainless Steel |
| Connection 2 Tube Outside Diameter | 6 mm (O.D.) |
| Connection 1 Type | BSPP |
| Shape | Elbow - Stud, Male BSPP and Metric Thread |
| Specifications Met | REACH DI: 1907/2006, ISO 15001 (< 30 Bar), RoHS DI: 2011/65/EC, BAM (grease certification residue), CGA G4.1, EN 12021 (< 0,1 Mg/m3), VDI 2083-8 (in progress), RoHS DI: 2002/95/EC |
| Application | Pharmaceutical Process, O2 Circuits, Laboratory, Clean Rooms, Respiratory, Bio-Fluid Management |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
