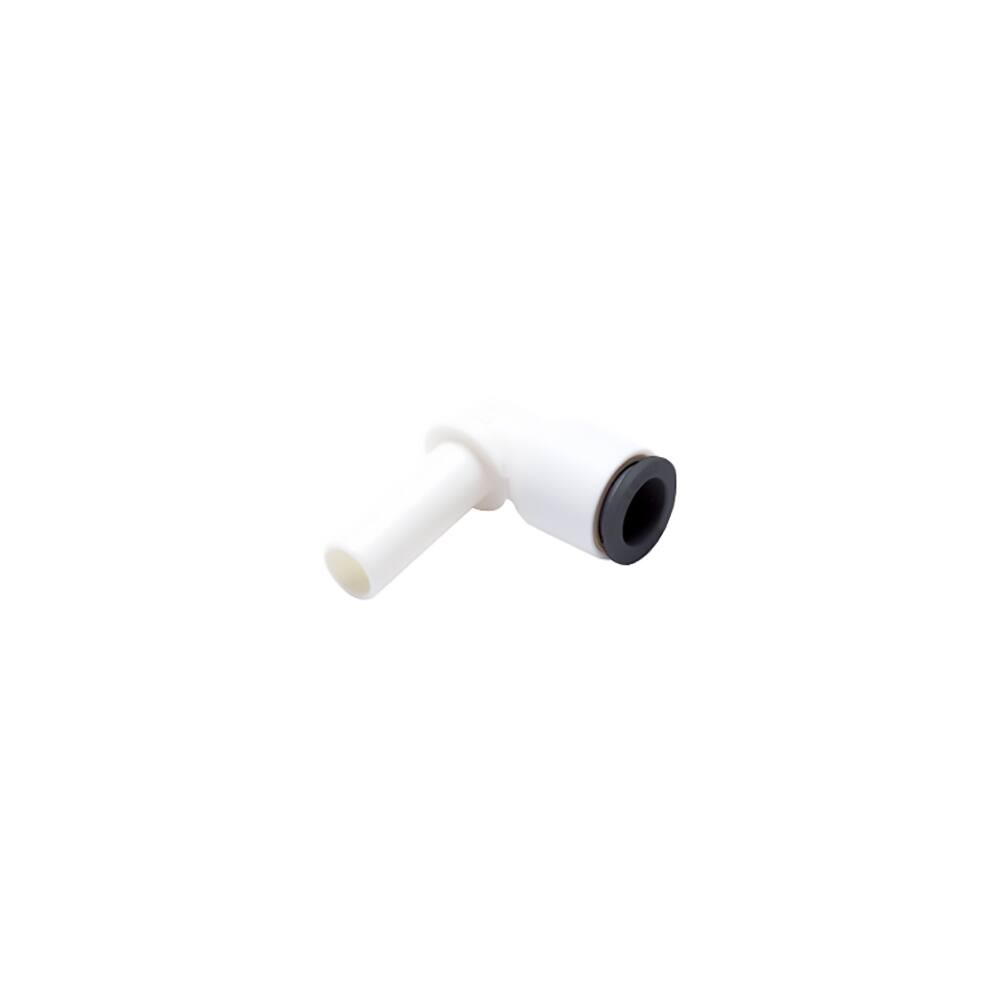

Parker Legris Cleanfit LF6800 6mm - 6mm Equal Plug In Elbow
Overview
The Parker Legris Cleanfit LF6800 is a 6mm equal plug-in elbow connector designed for medical gas applications and bio-fluid management in low-pressure systems.
This push-to-connect fitting simplifies installation in pneumatic and instrumentation air networks by eliminating the need for tools or threading. The elbow configuration allows flexible routing through confined spaces whilst maintaining reliable connections. Built from bio-based polymer with stainless steel gripping rings and EPDM seals, the connector delivers dependable performance across the -10 °C to 95 °C operating range, making it suitable for both indoor and temperature-variable environments. The 6mm tube outside diameter on both ports ensures compatible integration with standard pneumatic tubing, whilst meeting RoHS compliance for regulated applications.
Supplied in boxes of ten, this fitting serves medical device manufacturers, pharmaceutical processing facilities, food and beverage production, and instrument air systems requiring quick-disconnect solutions without compromising system integrity.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Bio-based Polymer |
| Seal Material | EPDM |
| Weight | 0.003 kg |
| For Fluid Type | Air (Breathing Air). Other Fluids: Please consult us., Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us |
| Product Type | Bulkhead Connectors and Plug-In Fittings |
| Quantity per Box | 10 |
| Connection 3 Tube Outside Diameter | 6 mm (O.D.) |
| Gripping Ring | Stainless Steel |
| Connection 2 Tube Outside Diameter | 6 mm (O.D.) |
| Shape | Elbow - Equal and Unequal Plug-in |
| Specifications Met | RoHS DI: 2011/65/EC, BAM (grease certification residue), ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), CGA G4.1, REACH DI: 1907/2006, VDI 2083-8 (in progress), RoHS DI: 2002/95/EC |
| Application | Respiratory, Pharmaceutical Process, Clean Rooms, O2 Circuits, Laboratory, Bio-Fluid Management |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
