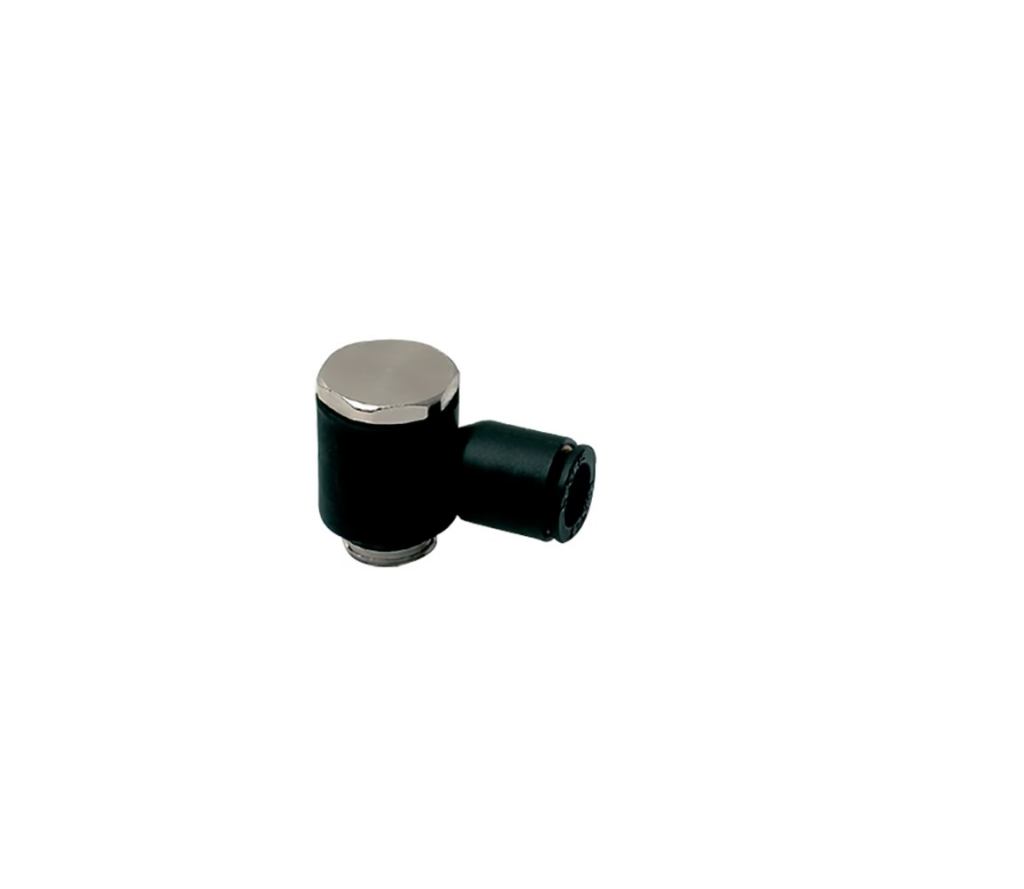

Parker Legris LF3000 10mm - 1/2"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 10 mm tube to G 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm – 1/2" BSPP Male Single Banjo is a 90° elbow connector designed for vacuum and low-pressure pneumatic applications requiring reliable tube-to-port connections.
This push-to-connect fitting delivers dependable performance across a broad operating range from -20 °C to +80 °C, with a vacuum rating of 755 mm-Hg. The technical polymer body paired with stainless steel gripping ring and NBR seals ensures durability whilst maintaining lightweight portability. Its 10 mm outer diameter tube inlet couples directly to a G 1/2 male BSPP port outlet, facilitating straightforward integration into existing manifolds and control systems. The banjo configuration minimises installation time, whilst the metric hexagon head (25 mm) enables secure torquing and maintenance access. Suitable for instrument air, process gas handling, and fluid distribution networks, this fitting suits power generation facilities, manufacturing automation, and pneumatic control infrastructure.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/2 inch Thread |
| Hex Size | 25 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated, Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Textile, Pneumatics, Automotive, Packaging, Robotics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.084 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
