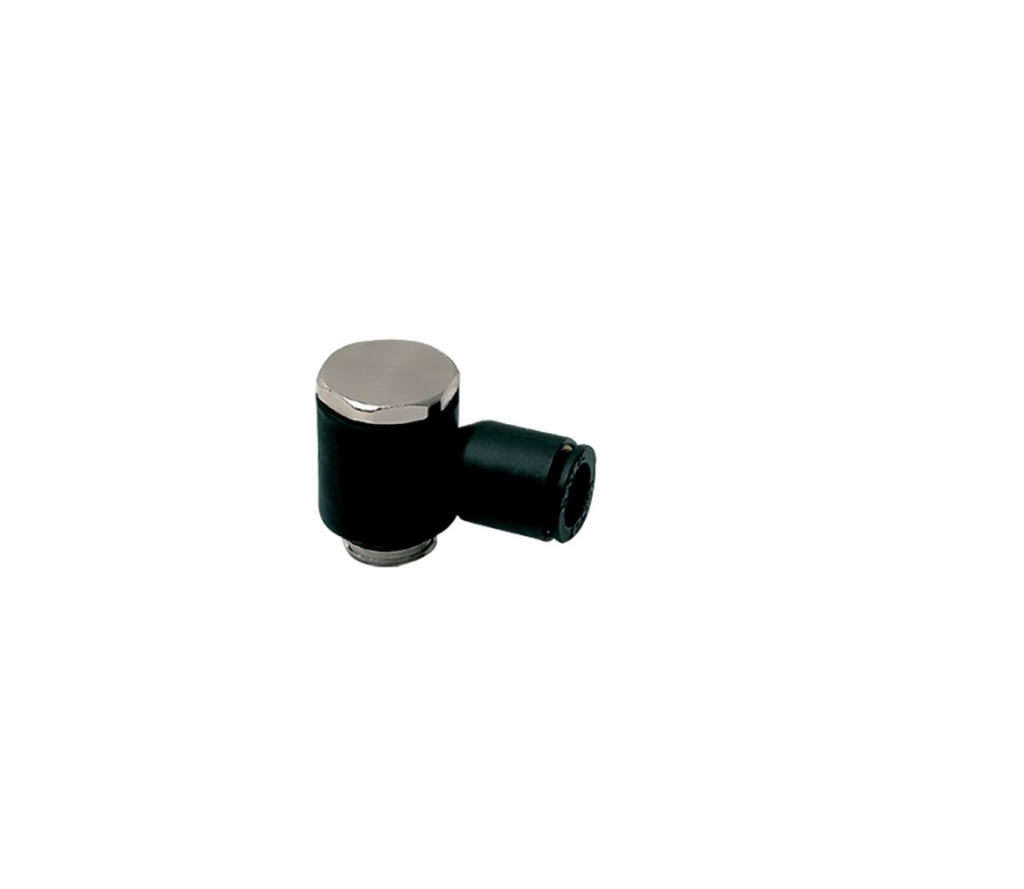

Parker Legris LF3000 10mm - 1/4"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 10 mm tube to G 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm to 1/4" BSPP male single banjo fitting is designed for pneumatic and low-pressure fluid connections in robotics and automated manufacturing equipment.
This push-to-connect elbow fitting simplifies installation and maintenance by eliminating the need for tools during tube connection and disconnection. The 90° banjo configuration allows flexible port positioning, whilst the nickel-plated brass body ensures durability in industrial environments. The stainless steel gripping ring and NBR seals provide reliable performance across a wide operating temperature range from −20 °C to 80 °C, with a vacuum rating of 755 mm-Hg. The fitting accommodates 10 mm outer diameter tubing and 1/4" BSPP male ports, making it compatible with standard pneumatic system layouts.
This connector serves industrial automation, food and beverage processing, and general instrument air applications where quick, secure connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | BSPP, Male |
| Connection 2 Size | G 1/4 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Vacuum, Pneumatics, Packaging, Textile, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.025 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
