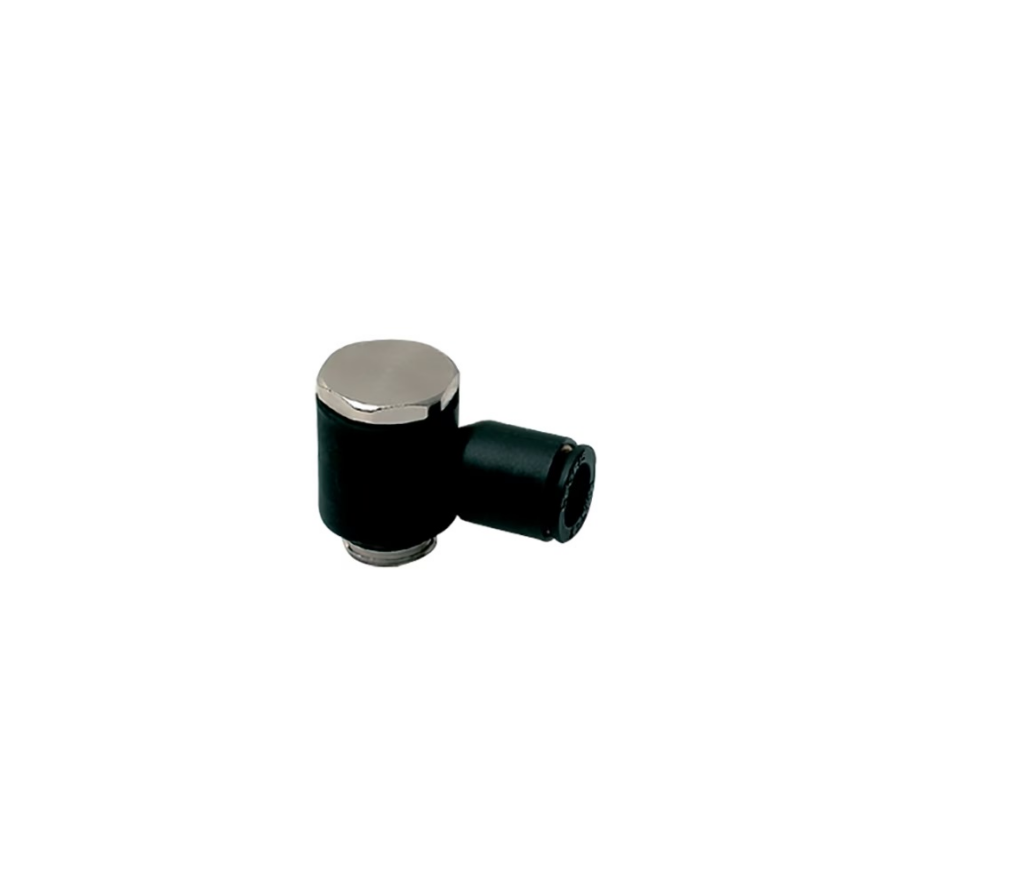

Parker Legris LF3000 10mm - 3/8"Bspp Male Single Banjo
Overview
The Parker Legris LF3000 10mm – 3/8" BSPP Male Single Banjo is a 90° elbow connector designed for vacuum and compressed air applications in low-pressure pneumatic systems.
This push-to-connect fitting eliminates the need for tools during installation, reducing assembly time and potential leakage points. The banjo configuration makes it ideal for manifold integration and space-constrained installations where a compact elbow connection is required. With a nickel-plated brass body and stainless steel gripping ring, the fitting delivers reliable performance across a wide temperature range from –20 °C to +80 °C, whilst the NBR seal ensures durability in vacuum circuits rated to 755 mm-Hg. The tube connection accepts 10 mm O.D. tubing, whilst the male BSPP thread provides secure coupling to standard 3/8" port connections on pneumatic equipment and manifolds. Each fitting is supplied with a 20 mm hexagon metric nut for straightforward installation.
Widely used across transportation, industrial automation, and process control applications, this fitting supports efficient pneumatic distribution networks where reliability and ease of maintenance are paramount.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 20 |
| Weight | 0.039 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | G 3/8 inch Thread |
| Connection 2 Type | BSPP, Male |
| Shape | Elbow 90° |
| Application | Textile, Robotics, Pneumatics, Automotive, Packaging, Vacuum |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
