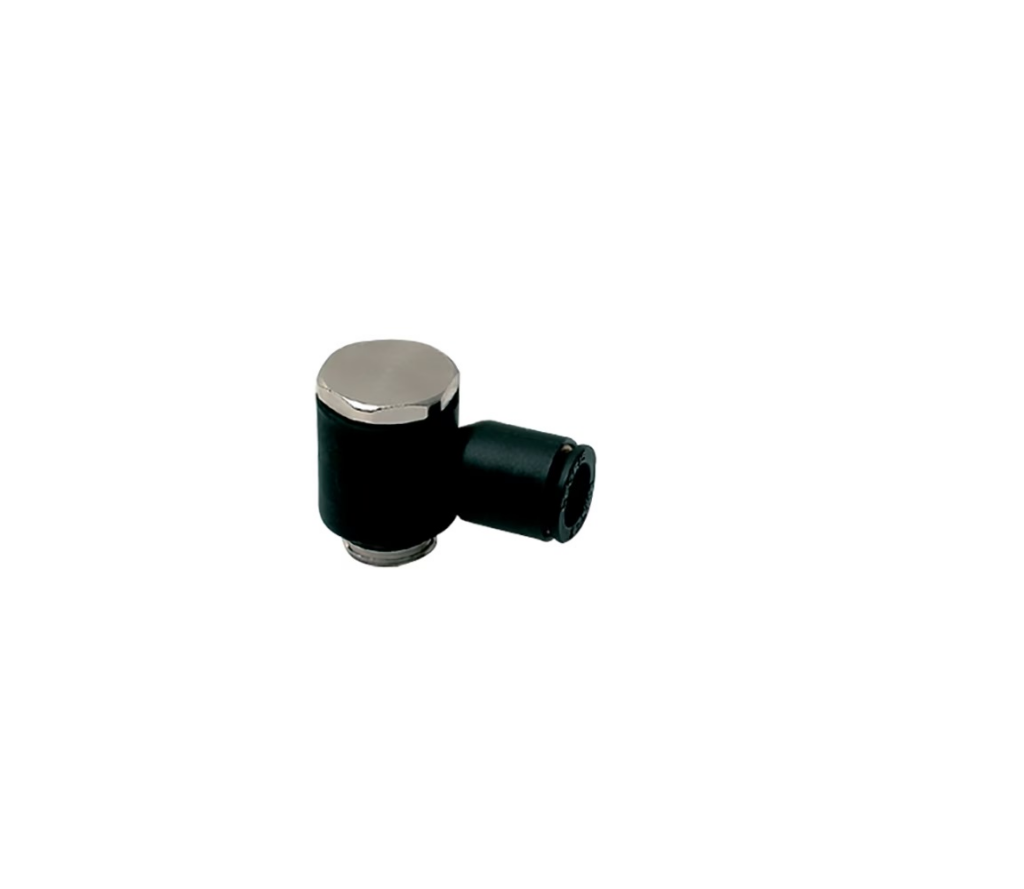

Parker Legris LF3000 8mm - 1/4"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 8 mm tube to G 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm to 1/4" BSPP male single banjo fitting is a pneumatic push-to-connect elbow designed for compressed air applications in low-pressure systems.
This banjo-style connector offers reliable fluid and gas handling in pneumatic circuits where quick, tool-free connections are essential. The 90-degree elbow configuration optimises space within tight installation layouts, whilst the push-in tube connection on one end and male BSPP port on the other provides flexible integration into existing manifold systems. The technical polymer body with stainless steel gripping ring delivers durability across demanding operating environments, maintaining performance across a temperature range of −20 °C to 80 °C with a vacuum rating of 755 mm-Hg.
Specified for the semiconductor industry and compatible with 8 mm (O.D.) tubing, this fitting combines ease of installation with robust construction. The compact hexagon metric body (17 mm hex size) accommodates standard wrenching where needed during manifold assembly. Supplied in convenient packs of 10, this fitting serves industrial automation, process air systems, and instrumentation applications where dependable low-pressure connections are non-negotiable.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/4 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated, Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Vacuum, Packaging, Robotics, Textile, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.024 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
