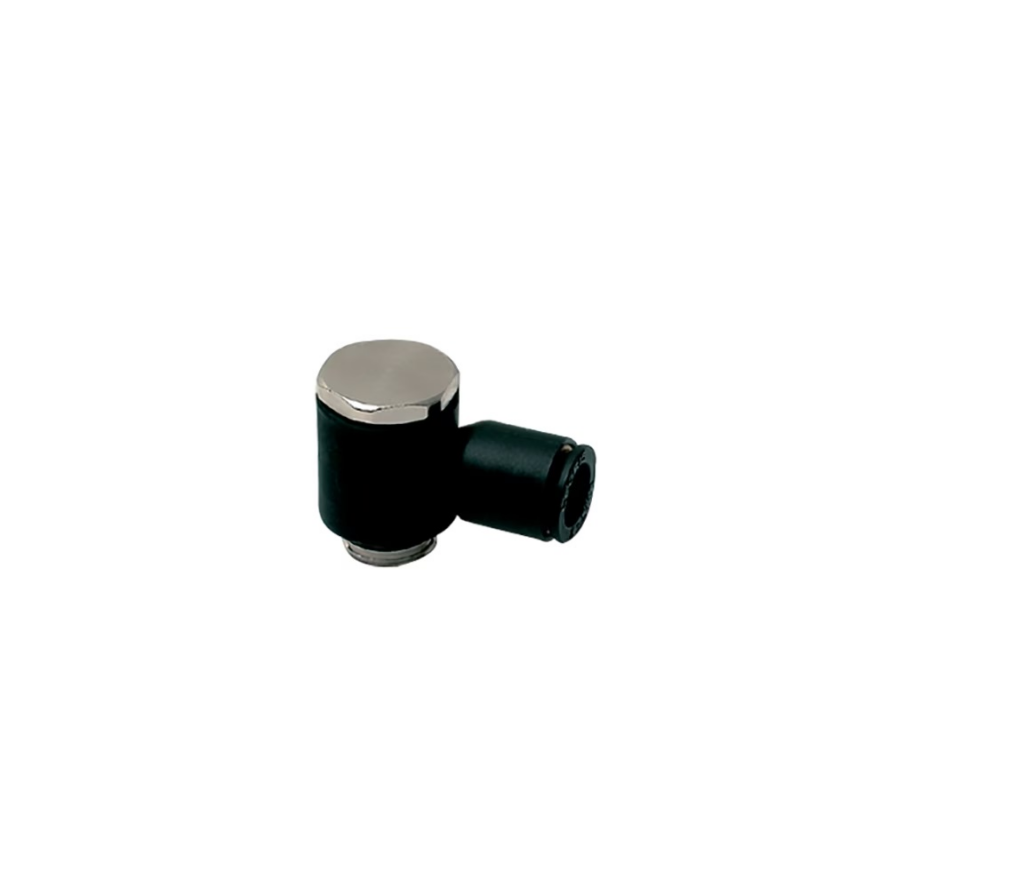

Parker Legris LF3000 6mm - 1/8"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 6 mm tube to G 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm to 1/8" BSPP male single banjo fitting is a push-to-connect elbow connector designed for compressed air applications in pneumatic systems.
This connector simplifies installation and maintenance in low-pressure fluid distribution networks where space constraints or awkward routing demands a 90-degree configuration. The banjo design allows tool-free tube insertion and removal, reducing downtime and improving system flexibility across process control and instrumentation air setups. Its nickel-plated brass body with stainless steel gripping ring ensures reliable performance in demanding environments, whilst the NBR seal material maintains consistent operation across the -20 °C to 80 °C temperature range. The 6 mm tube connection pairs with a G 1/8 male BSPP port to suit standard industrial pneumatic infrastructure.
Weighing just 12 grams, this compact fitting is particularly valued in semiconductor manufacturing, industrial automation, food and beverage processing, and general process air applications where quick-disconnect capability and corrosion resistance are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | BSPP, Male |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 13 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Vacuum, Textile, Robotics, Automotive, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.012 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
