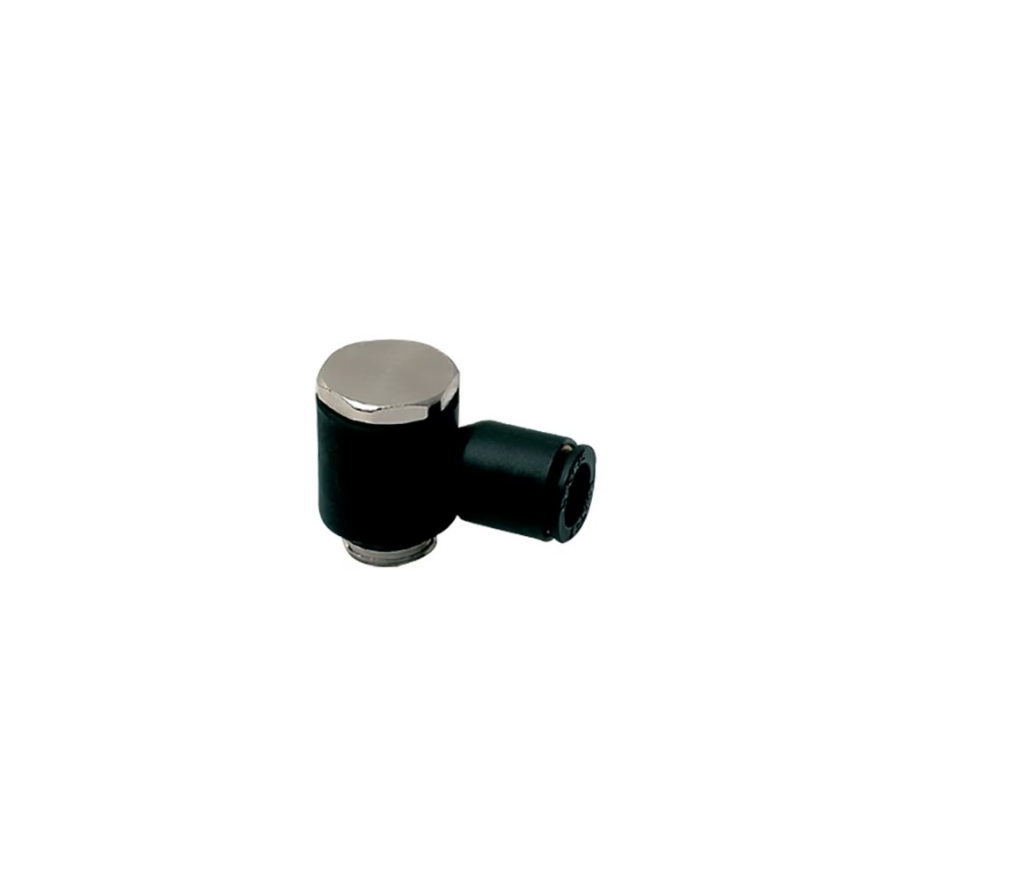

Parker Legris LF3000 8mm - 1/8"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 8 mm tube to G 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm to 1/8" BSPP male single banjo elbow is a pneumatic push-in fitting designed for automotive and semiconductor applications requiring reliable tube-to-port connections.
This 90° elbow connector excels in low-pressure fluid and gas handling systems where quick, tool-free assembly is essential. The push-to-connect design eliminates the need for traditional wrenches during installation, whilst the stainless steel gripping ring and nickel-plated brass body ensure dependable performance in demanding environments. Operating across a temperature range of –20 °C to 80 °C with a vacuum rating of 755 mm-Hg, this fitting accommodates 8 mm tubing (O.D.) and features a G 1/8 male BSPP thread with a 13 mm hex size for secure port connection. The NBR seal material provides excellent compatibility with various pneumatic fluids and gases.
Supplied in boxes of 10 units, this compact fitting weighs just 0.013 kg per piece, making it ideal for space-constrained applications. The LF3000 series serves industrial automation, process control, and automotive manufacturing sectors where efficient, leak-free connections are non-negotiable.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 13 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Packaging, Pneumatics, Textile, Vacuum, Robotics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.013 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
