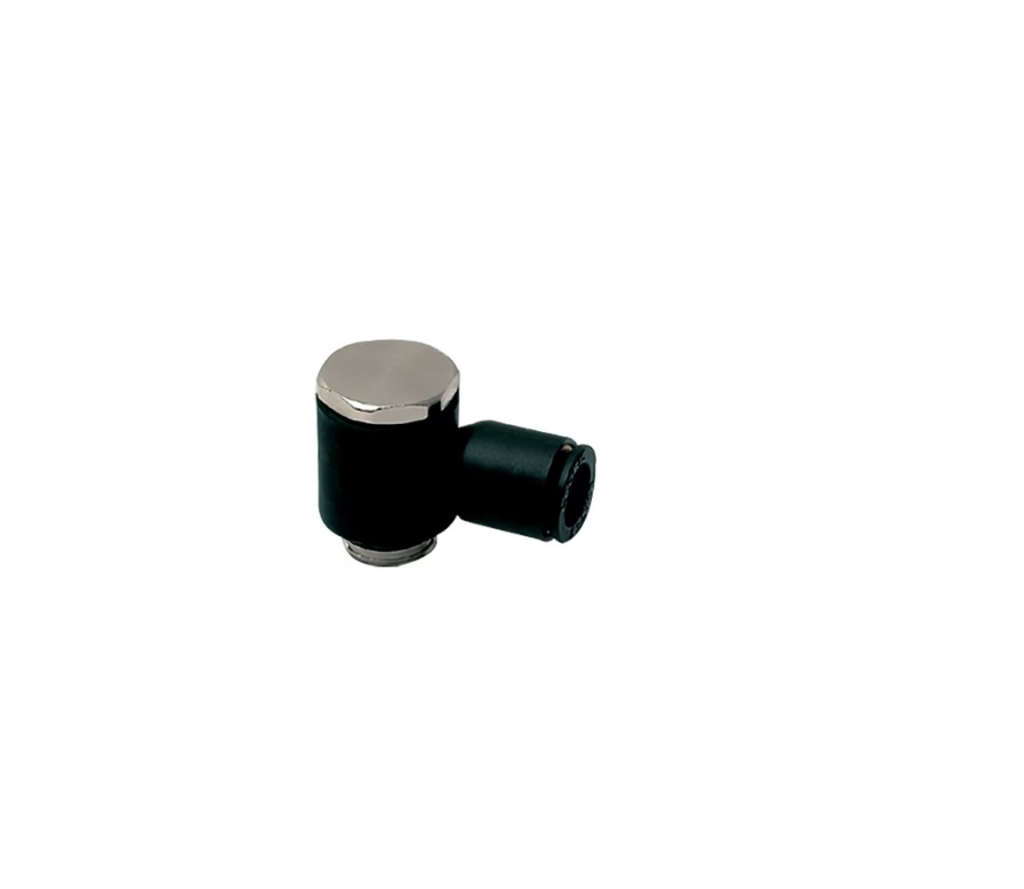

Parker Legris LF3000 4mm - M5 Metric Male Single Banjo
Parker Legris LF3000 elbow 90°, 4 mm tube to M 5, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 4mm – M5 Metric Male Single Banjo is a 90° elbow push-to-connect fitting designed for robotics and automated systems requiring reliable low-pressure fluid and gas connections.
This banjo fitting excels in applications where space is tight and quick, tool-free assembly is essential. The compact 90° elbow configuration simplifies installation whilst the push-in tube connection (4mm O.D.) pairs seamlessly with an M5×0.8 male metric port, making it ideal for instrument air lines, pneumatic controls, and low-pressure manifold work. Constructed from nickel-plated brass with a stainless steel gripping ring and NBR seals, the fitting delivers durability across a wide operating temperature range of –20 °C to 80 °C and maintains a vacuum rating of 755 mm-Hg, ensuring consistent performance in demanding environments.
Supplied in boxes of ten, this fitting serves industries including renewable energy systems, process automation, and precision robotics where dependable, compact pneumatic connections are paramount.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | Male, Metric |
| Connection 2 Size | M5x0.8 mm Thread |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Packaging, Vacuum, Textile, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.004 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
