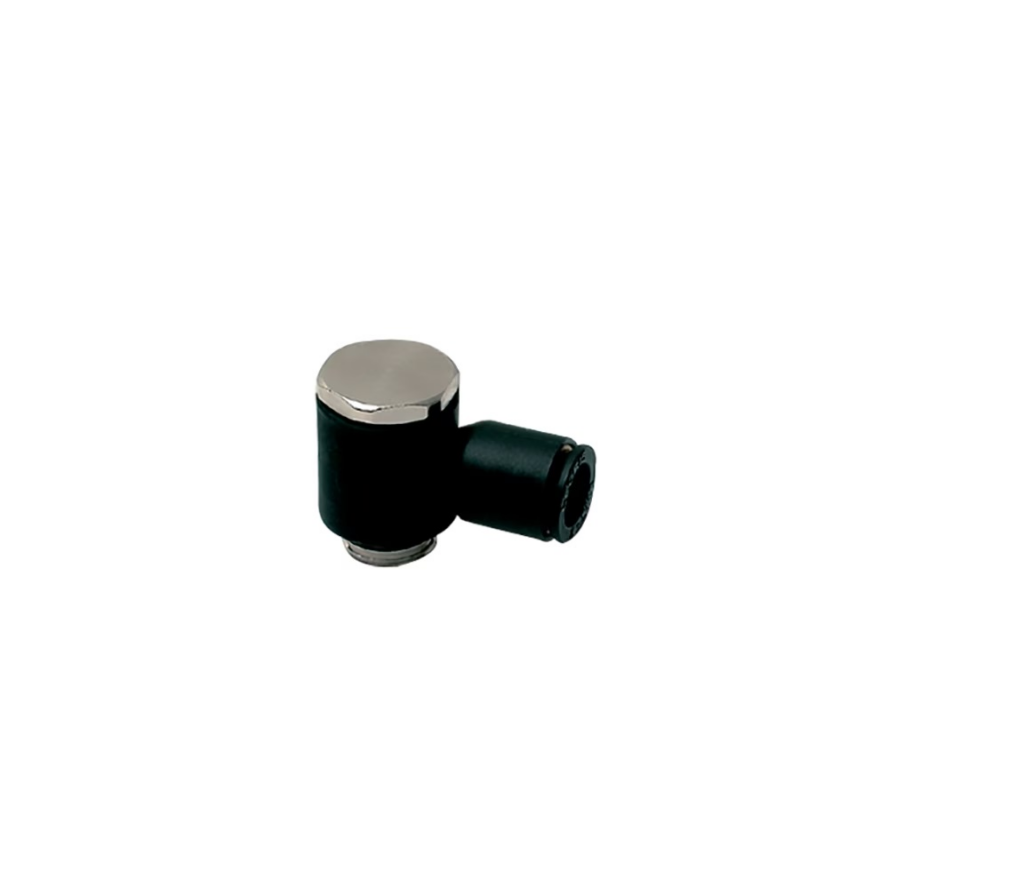

Parker Legris LF3000 4mm - 1/8"Bspp Male Single Banjo
Overview
The Parker Legris LF3000 4mm to 1/8" BSPP Male Single Banjo is a 90° elbow connector designed for low-pressure pneumatic and fluid distribution applications in textile processing and chemical environments.
This push-to-connect fitting delivers reliable performance across temperature ranges from -20 °C to 80 °C, with vacuum capability up to 755 mm-Hg, making it ideal for instrument air systems, process control lines, and general pneumatic circuits. The technical polymer body combines lightweight durability with chemical resistance, whilst the stainless steel gripping ring and NBR seals ensure consistent performance in demanding conditions. The 4 mm tube connection mates seamlessly with the G 1/8 male BSPP port, providing secure tool-free assembly without the need for hose clamps or adhesives.
Supplied in boxes of ten with a 13 mm hexagon metric body for secure wrench handling, this banjo-style connector serves industrial automation, chemical processing, and textile manufacturing operations where quick, leak-free connections are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated, Technical Polymer |
| Seal Material | NBR |
| Hex Size | 13 |
| Weight | 0.012 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | G 1/8 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Elbow 90° |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Automotive, Robotics, Vacuum, Pneumatics, Packaging, Textile |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
