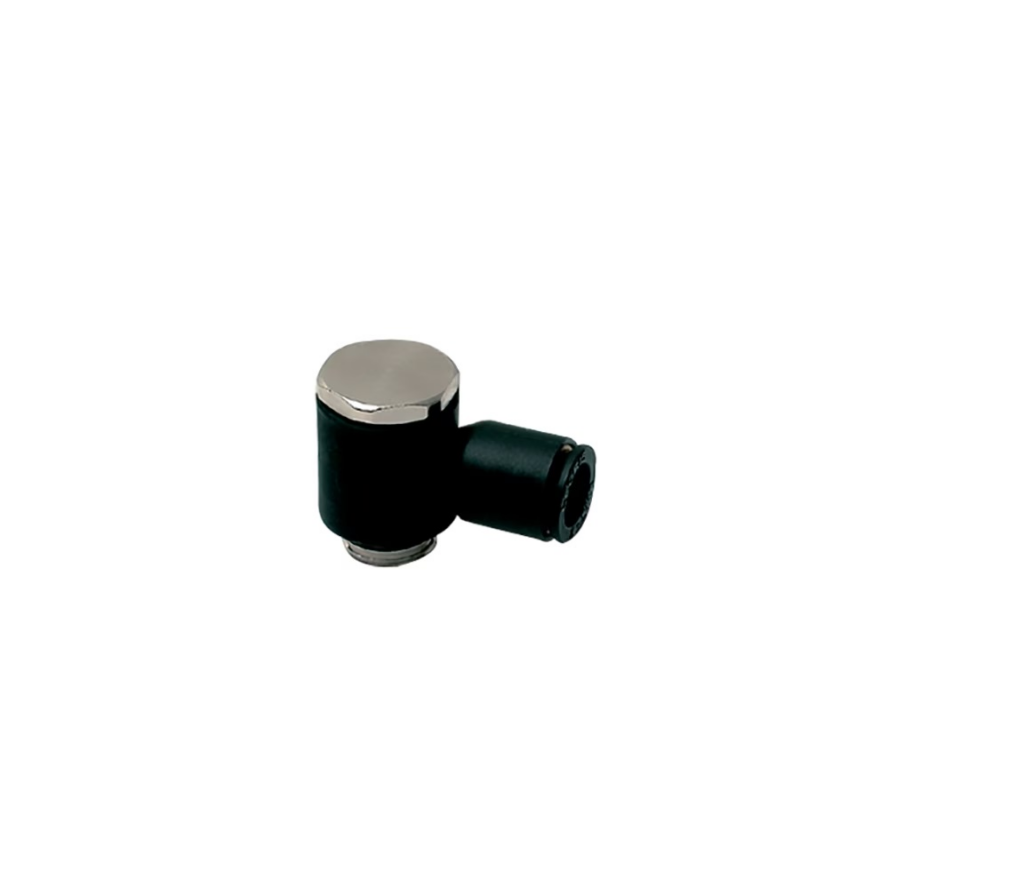

Parker Legris LF3000 6mm - 1/4"Bspp Male Single Banjo
Parker Legris LF3000 elbow 90°, 6 mm tube to G 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm to 1/4" BSPP male single banjo fitting is a push-to-connect elbow connector designed for vacuum and low-pressure pneumatic applications. This 90° banjo fitting seamlessly joins 6mm tubing to G 1/4 male BSPP ports, making it ideal for instrument air systems, process control lines, and compressed gas distribution networks where quick, tool-free assembly is valued. The fitting's brass body with nickel plating and stainless steel gripping ring ensure corrosion resistance and durability across demanding industrial environments, whilst the NBR seal provides reliable leak-free performance across the -20°C to +80°C operating range and 755 mm-Hg vacuum rating. Supplied in quantities of ten per box with a 17mm hex size for wrench access, this connector optimises space in tight installations while maintaining the robust low-pressure performance Legris is known for. The LF3000 banjo fitting serves power generation, industrial automation, food and beverage processing, and general pneumatic applications where dependable fluid and gas handling is essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/4 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Textile, Automotive, Packaging, Pneumatics, Robotics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.023 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
