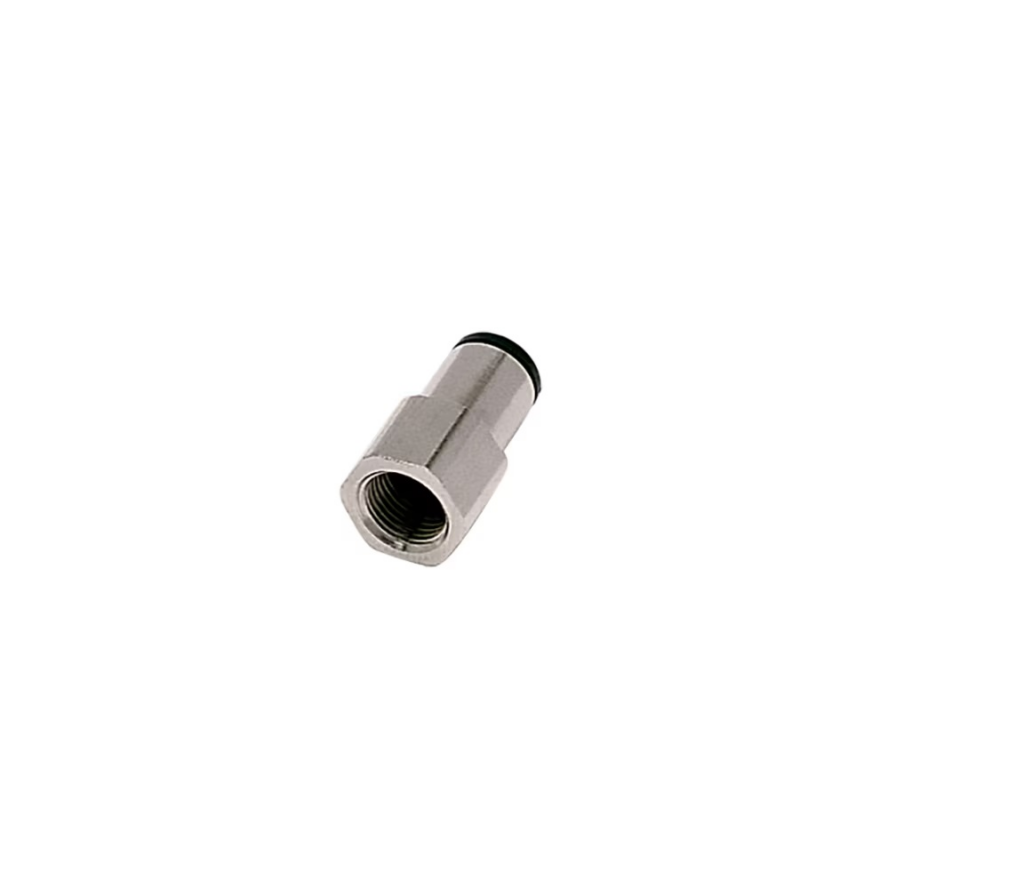

Parker Legris LF3000 10mm - 1/4"Bspp Female Stud Fitting
Overview
The Parker Legris LF3000 10mm to 1/4" BSPP female stud fitting is a push-to-connect pneumatic connector designed for compressed air and vacuum applications in low-pressure systems.
This straight stud fitting simplifies installation and maintenance by eliminating the need for tools during tube connection and disconnection. It performs reliably across a broad temperature range from −20 °C to +80 °C, making it suitable for varied industrial environments. The fitting combines a nickel-plated brass body with a stainless steel gripping ring and NBR seals, delivering corrosion resistance and durability. With a 10mm tube outlet and G 1/4 female BSPP port inlet, it integrates seamlessly into existing pneumatic infrastructures. The unit achieves a vacuum pressure rating of 755 mm-Hg, ensuring dependable performance in both positive and negative pressure circuits.
This connector serves industrial processing, automation, and instrument air systems where quick, secure fluid and gas connections are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 16 |
| Weight | 0.027 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | G 1/4 inch Thread |
| Connection 2 Type | Female, BSPP |
| Shape | Straight |
| Application | Automotive, Pneumatics, Robotics, Packaging, Textile, Vacuum |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
