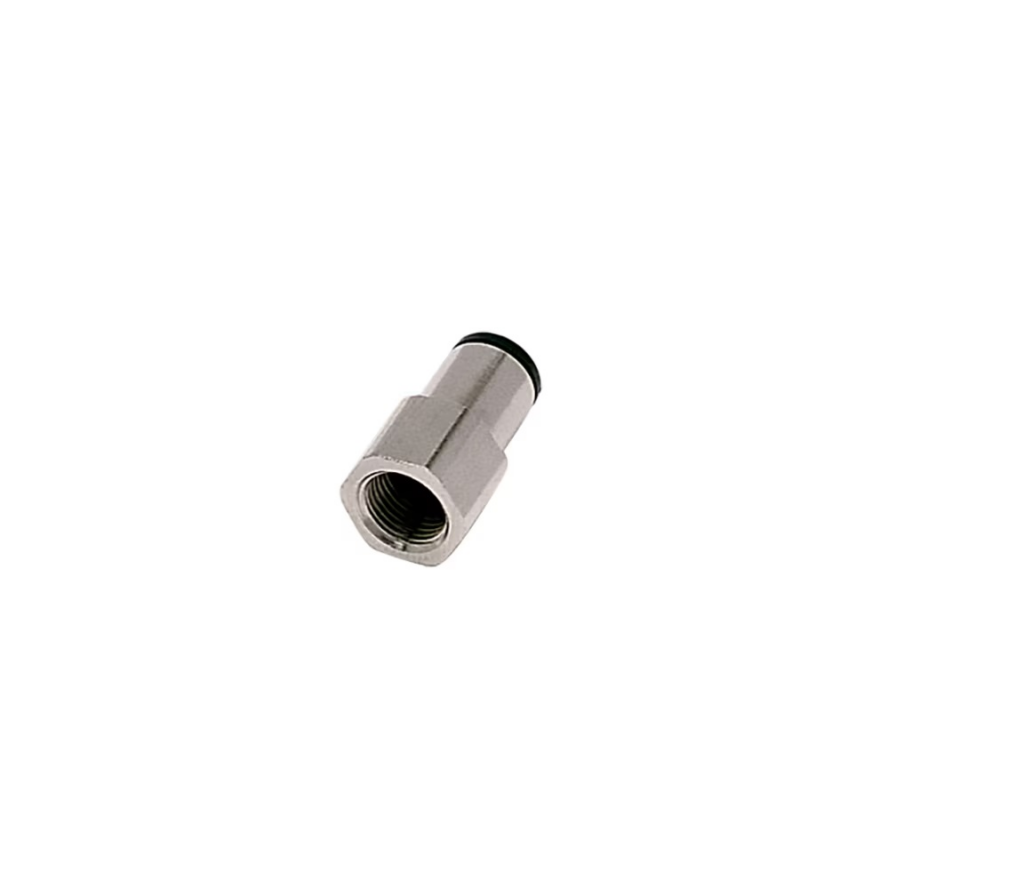

Parker Legris LF3000 4mm - 1/8"Bspp Female Stud Fitting
Parker Legris LF3000 straight, 4 mm tube to G 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 4mm – 1/8" BSPP Female Stud Fitting is a push-to-connect coupling designed for compressed air applications in industrial processing and automotive environments.
This fitting excels in low-pressure pneumatic systems where quick, tool-free connections are essential. The straight stud configuration with 4mm tube inlet and G 1/8 female BSPP port outlet enables rapid assembly and reliable disconnection without fluid loss, making it ideal for instrument air lines, process control systems, and modular automation layouts. The nickel-plated brass body with stainless steel gripping ring ensures corrosion resistance and durability in demanding workshop conditions, whilst the NBR sealing material maintains integrity across the operating temperature range of –20 °C to +80 °C.
Supplied with a 13mm hexagon metric wrench interface for secure installation, this fitting handles vacuum conditions down to 755 mm-Hg and delivers dependable service in automotive manufacturing, food and beverage processing, and general industrial automation applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | Female, BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 13 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Textile, Vacuum, Robotics, Pneumatics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.010 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
