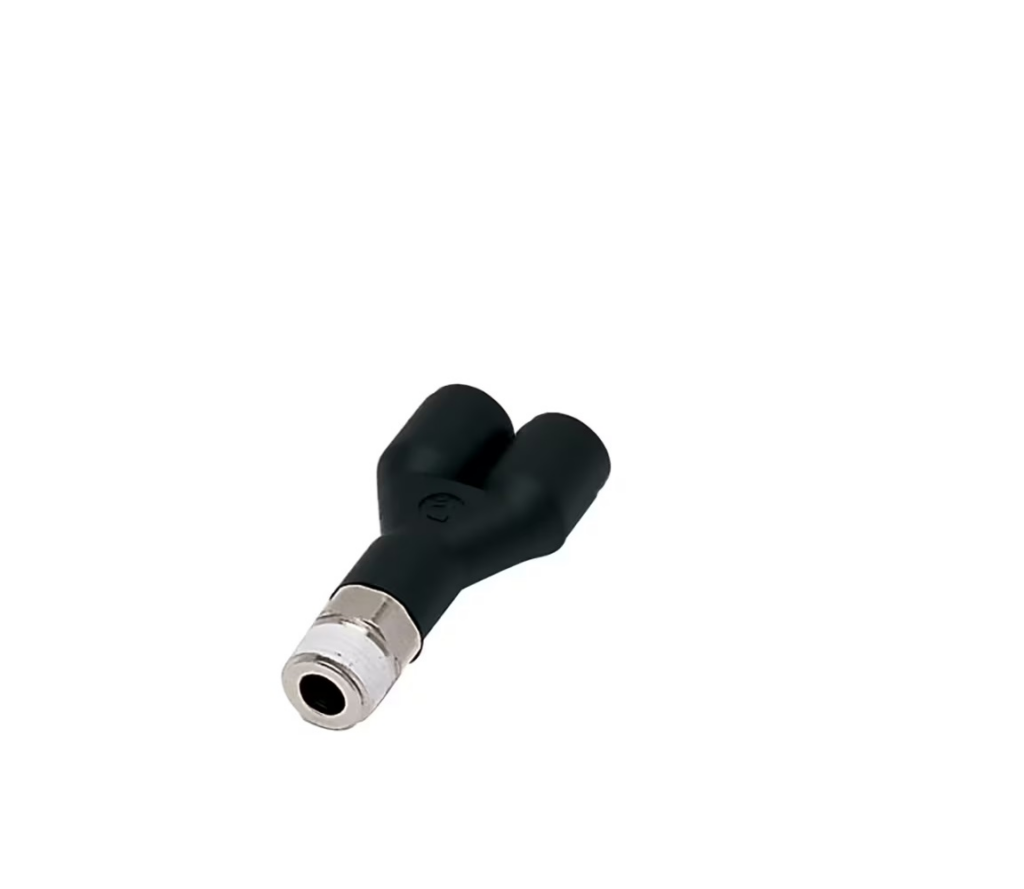

Parker Legris LF3000 10mm - 1/4"Bspt Male Y Piece
Parker Legris LF3000 wye, 10 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm – 1/4" BSPT Male Y Piece is a push-to-connect pneumatic fitting designed for branching compressed air circuits in robotics and off-road machinery applications.
This stud fitting distributes air flow efficiently across multiple system paths without requiring tools for installation or disconnection. The wye configuration allows simple, reliable tubing consolidation in space-constrained environments, whilst the stainless steel gripping ring and NBR seal ensure secure, leak-free connections over extended service life. Built from technical polymer, the fitting body remains lightweight yet durable, operating reliably between –20 °C and 80 °C and withstanding vacuum pressures to 755 mm-Hg.
The 10 mm outside diameter tube connection pairs with a R 1/4 male BSPT port, accommodating standard industrial tubing and manifold interfaces. Supplied in boxes of ten units, this fitting serves industrial automation, process instrument air systems, and pneumatic control networks across manufacturing and mobile equipment sectors.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Wye |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 14 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Packaging, Pneumatics, Vacuum, Textile, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.033 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.17 |
