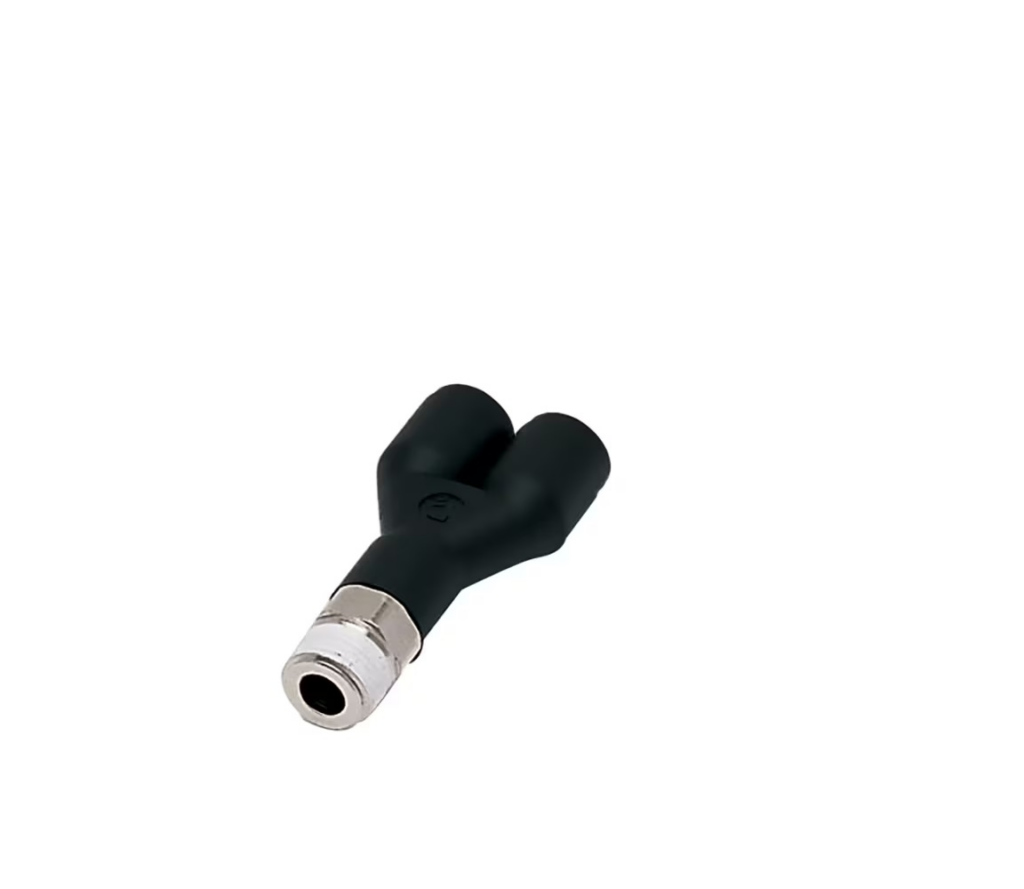

Parker Legris LF3000 8mm - 3/8"Bspt Male Y Piece
Overview
The Parker Legris LF3000 8mm to 3/8" BSPT Male Y Piece is a push-to-connect fitting designed for branching pneumatic and low-pressure fluid distribution networks in packaging machinery and renewable energy applications.
This wye-configuration connector simplifies system layout by enabling a single inlet tube to feed two independent outlets, reducing the need for external manifold blocks. The technical polymer body with stainless steel gripping ring combines durability with corrosion resistance, whilst the NBR seal ensures reliable performance across the –20 °C to +80 °C operating range. Rated to 755 mm-Hg vacuum, the fitting accommodates 8 mm tubing on the inlet side and features a R 3/8 BSPT male port for secure connection to pneumatic equipment or control instrumentation.
The hexagon metric design (16 mm across flats) permits straightforward installation and maintenance in confined spaces. Supplied in boxes of ten units, this fitting serves industrial automation, food and beverage processing, and instrument air applications where quick, tool-free assembly is valued.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 16 |
| Weight | 0.034 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Wye |
| Application | Automotive, Vacuum, Robotics, Textile, Pneumatics, Packaging |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
