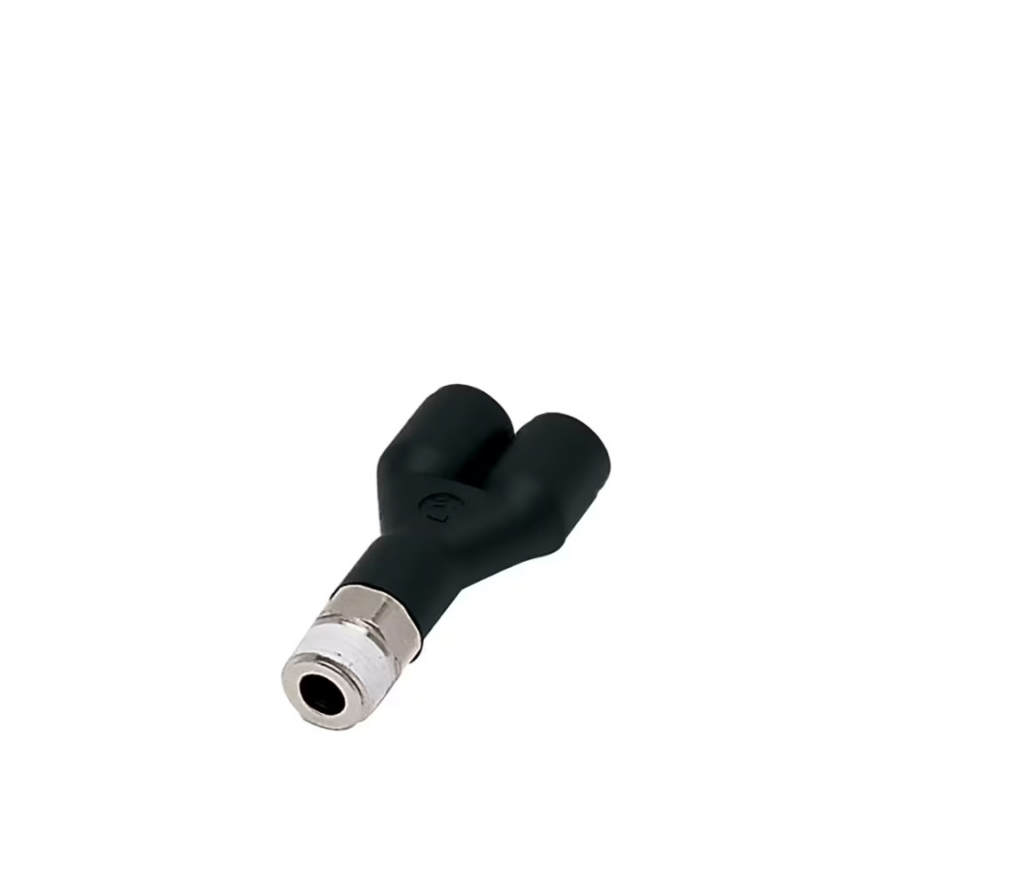

Parker Legris LF3000 4mm - 1/4"Bspt Male Y Piece
Parker Legris LF3000 wye, 4 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 4mm to 1/4" BSPT Male Y Piece is a push-to-connect pneumatic fitting designed for branching compressed air lines in off-road machinery and packaging applications.
This wye-shaped connector simplifies circuit layouts by allowing a single tube to split into two directions without requiring separate manifolds. The technical polymer body with stainless steel gripping ring delivers reliable performance across the -20 °C to 80 °C operating range, whilst the NBR seals ensure consistent air-tightness. The fitting accommodates 4mm tube on the inlet side and terminates in a 1/4" BSPT male thread, making it compatible with standard pneumatic ports found throughout industrial air systems.
Installation is straightforward—simply push the tube into the inlet connection and thread the male BSPT end into your circuit. The 14mm hexagon body allows wrench tightening for secure assembly. Supplied in boxes of ten, this versatile fitting serves process automation, food packaging equipment, and instrument air distribution networks.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Wye |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 14 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Robotics, Textile, Pneumatics, Vacuum, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.019 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.17 |
