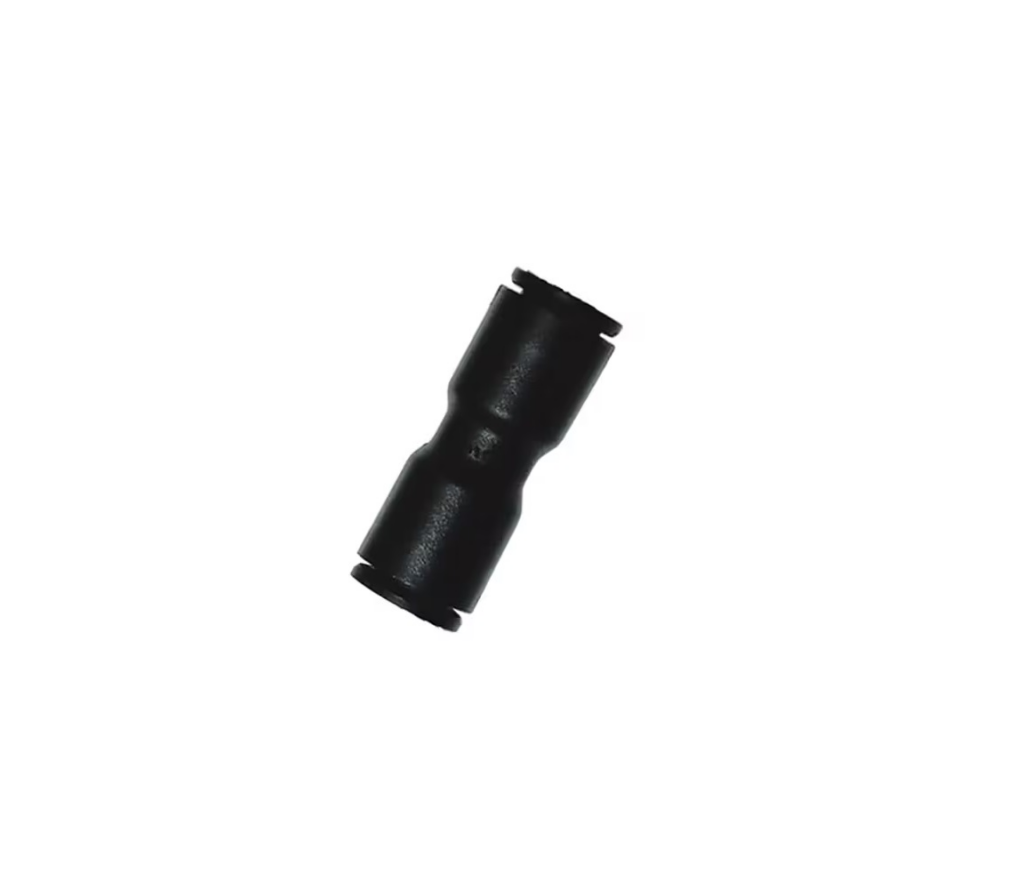

Parker Legris LF3000 10mm - 12mm Tube-to-Tube Connector
Overview
The Parker Legris LF3000 10mm–12mm tube-to-tube connector is a push-in fitting designed for low-pressure pneumatic and fluid applications in automotive and off-road machinery environments.
These straight connectors excel in systems requiring quick, tool-free assembly without compromising reliability. The push-to-connect design eliminates the need for spanners or crimping tools, reducing installation time whilst maintaining secure connections in applications ranging from instrument air to general pneumatic distribution. The technical polymer body paired with a stainless steel gripping ring ensures durability across the operating temperature range of -20 °C to +80 °C, whilst the NBR seal material provides consistent performance in low-pressure circuits rated to 755 mm-Hg vacuum. The 10mm and 12mm outer diameter tube sizes accommodate standard pneumatic tubing, making these fittings straightforward to integrate into existing layouts.
Widely specified across industrial automation, agricultural equipment, and process control systems, these connectors represent dependable solutions for engineers seeking simplicity without sacrificing performance.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.019 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | 12 mm Tube O.D. |
| Shape | Straight |
| Application | Pneumatics, Packaging, Vacuum, Textile, Robotics, Automotive |
| Gripping Ring Material | Stainless Steel |
| Hex Type | n/a |
| Connection 2 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
