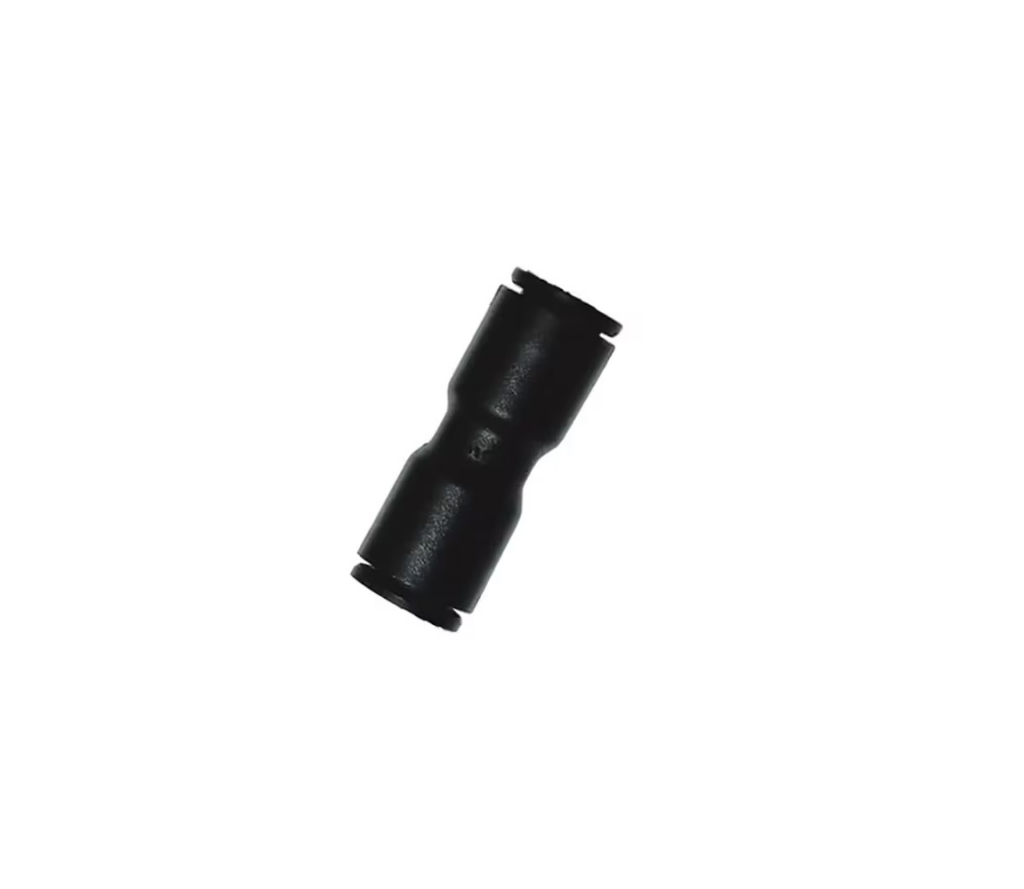

Parker Legris LF3000 12mm - 12mm Tube-to-Tube Connector
Parker Legris LF3000 straight, 12 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 is a straight tube-to-tube connector engineered for compressed air applications in packaging and industrial manufacturing equipment. This push-in fitting eliminates the need for tools during installation, reducing assembly time and simplifying maintenance across pneumatic networks. The 12 mm outer diameter tubing interface suits standard low-pressure distribution systems, whilst the stainless steel gripping ring and technical polymer body deliver reliable performance across temperatures from −20 °C to 80 °C. With an operating vacuum rating of 755 mm-Hg, the fitting maintains system integrity in both positive and negative pressure environments. The NBR seal material provides consistent air-tightness and chemical resistance, making it suitable for diverse industrial settings. Supplied in boxes of ten units, this connector serves food processing, automotive assembly, and general manufacturing automation where rapid, leak-free connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 12 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Textile, Automotive, Pneumatics, Vacuum, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.009 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
