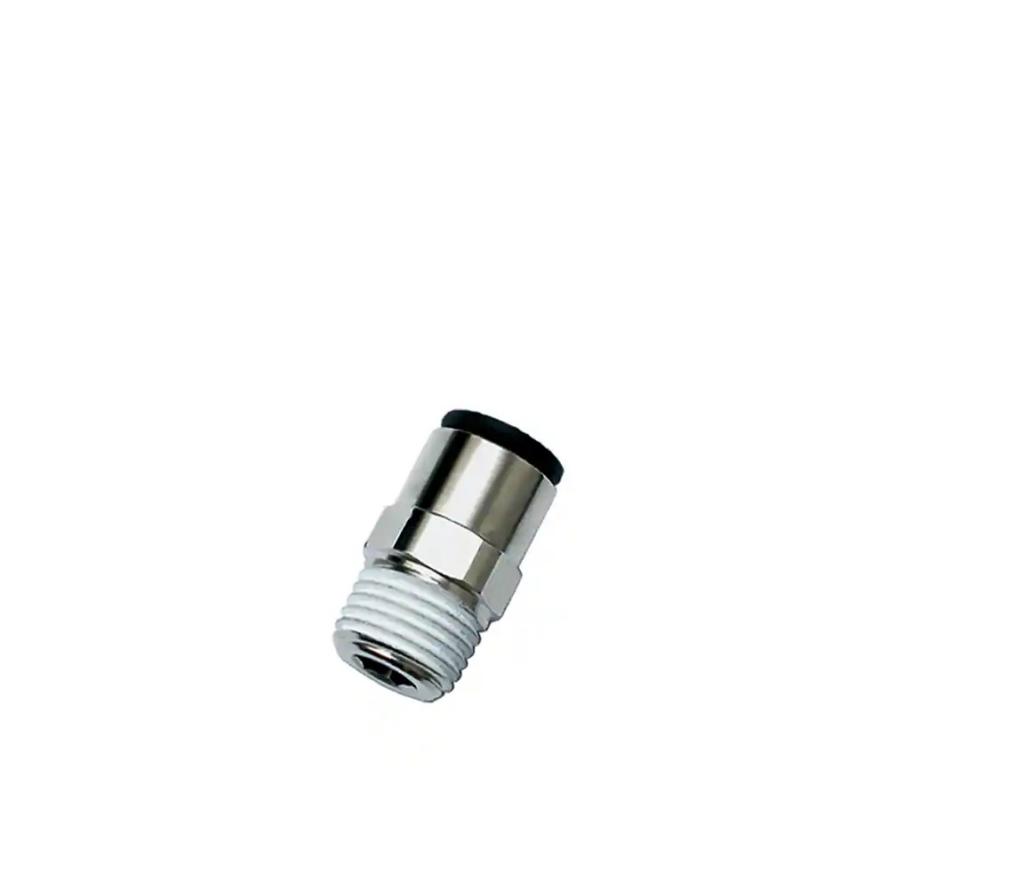

Parker Legris LF3000 12mm - 1/2"Bspt Male Stud Fitting
Parker Legris LF3000 straight, 12 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 is a 12mm push-to-connect stud fitting with 1/2" BSPT male thread, designed for pneumatic and low-pressure fluid applications in automotive and industrial processing environments.
This straight fitting connects 12mm tubing directly to 1/2" BSPT ports using Legris's reliable push-in technology, eliminating the need for tools or additional components. The nickel-plated brass body and stainless steel gripping ring ensure durability and corrosion resistance across a wide operating range from -20°C to +80°C, making it suitable for both heated and chilled applications. With a vacuum rating of 755 mm-Hg and NBR seals, the fitting maintains reliable performance in compressed air, inert gases, and compatible fluids across demanding industrial environments.
Supplied in boxes of ten with a convenient 21mm hexagon metric head for easy installation, this fitting delivers dependable connectivity for process control, instrument air systems, and automated manufacturing lines across industrial processing, automotive assembly, and related sectors.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Packaging, Textile, Robotics, Pneumatics, Vacuum, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.036 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
