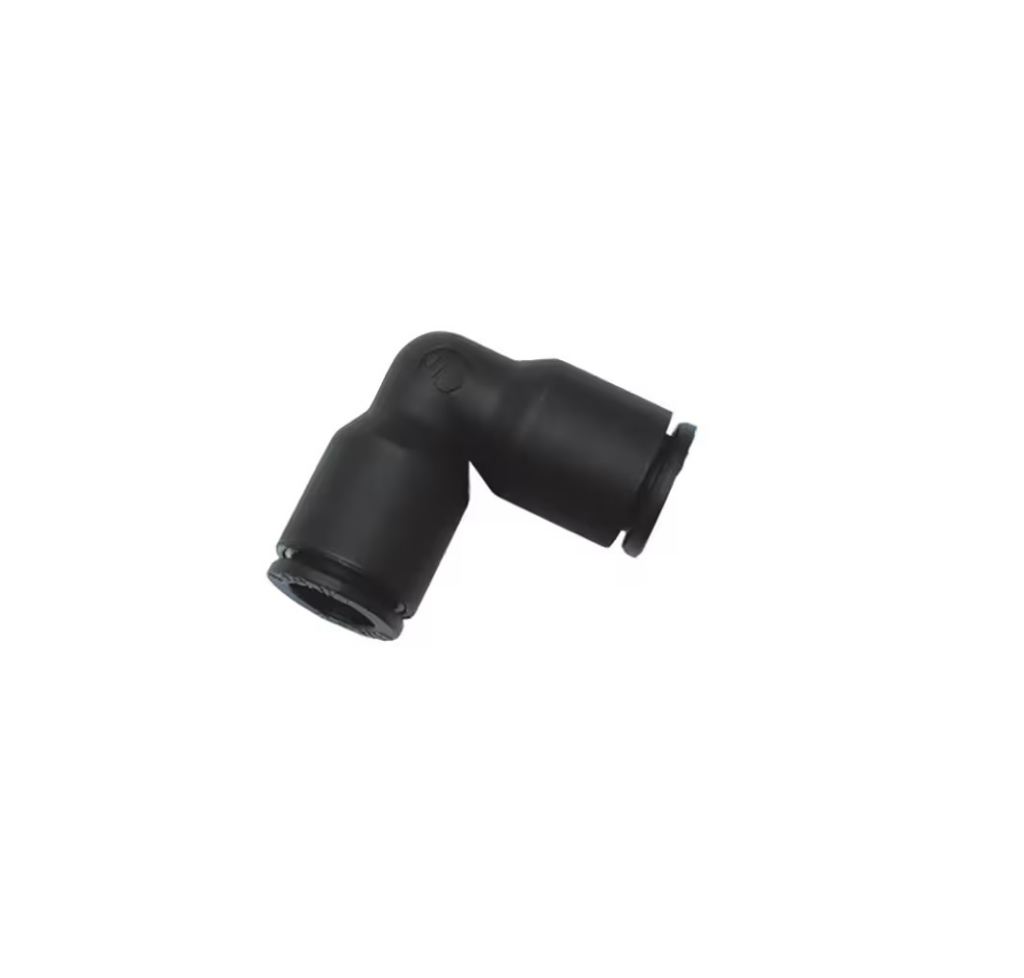

Parker Legris LF3000 12mm - 12mm Tube-to-Tube Elbow Connector
Overview
310201200 - Parker Legris LF3000 12mm - 12mm Tube-to-Tube Elbow Connector
The LF 3000® push-in fittings range includes banjo, oscillating and modular multiport functions offering multiple configurations. Robust, lightweight, and compact. Our connectors allow you to optimize the design of your pneumatic equipment.
Features/Benefits:
• Reliability
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Durability
• Conforms to ISO 14743
• Tried-and-tested longevity technology
• High number of pressure cycles
• No pumping effects
• Flexibility
• Compactness for space saving
• Multiple shapes and configurations for more modularity
• Sustainability
• ROHS and REACH compliant
• Eco-friendly thanks to full flow for efficiency
• Low carbon-printing – Made in Europe
Markets:
• Automation
• Industrial
• Food processing
Applications:
• Packaging manufacturing
• Robotic
• In-plant automotive
• Pneumatics
• Solenoid valves
• Pneumatic cylinders
• Pneumatic Machinery Equipment
• Low Pressure Compressed Air Conveying
• Vacuum systems
• Semiconductor machinery
• Textile machinery
• Cabinets/Panels
Technologies:
• Push-In Fittings
• Push-to-Connect Fittings
• Pneumatic Fittings
• Instant Fittings
• Quick Fittings
• Connectors
• Swivel Fittings
• Orient-able Fittings
• Modular Fittings
• Multi-Connectors
• Modular Plug-In Connectors
• Self-Sealing Fittings
• Connectors
Technical Characteristics:
• Fluids: compressed air, neutral gas, other fluids: please contact us
• Materials: Technical polymer, nickel-plated brass, NBR, Stainless Steel (Gripping Ring)
• Pressure: Vacuum to 20 bar
• Temperature: -20°C to +80°C
• Ø Metric: 3mm to 16 mm
• Ø Inch: 1/8″ to 1/2″
Regulations:
• ISO 14743
• PED
• RoHS
• REACH
Specifications
| Industry | Electronics |
|---|---|
| Division | Low Pressure Connectors Europe Division |
| Product Series | LF 3000® |
| Application | Automotive |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Hex Size | n/a |
| Weight | 0.010 kg |
| Body Material | Technical Polymer |
| Product Style | Push-in Fitting |
| For Fluid Type | Other Fluids: Please Consult Us |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | n/a |
| Brand | Legris |
| Shape | Elbow 90° |
| Connection 2 Size | 12 mm (O.D.) |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm (O.D.) |
| Gripping Ring Material | Stainless Steel |
| Connection 2 Type | Tube |
| Maximum Operating Temperature | 80 °C |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Seal Material | NBR |
| Minimum Operating Temperature | -20 °C |
| Technology | Fluid & Gas Handling |
